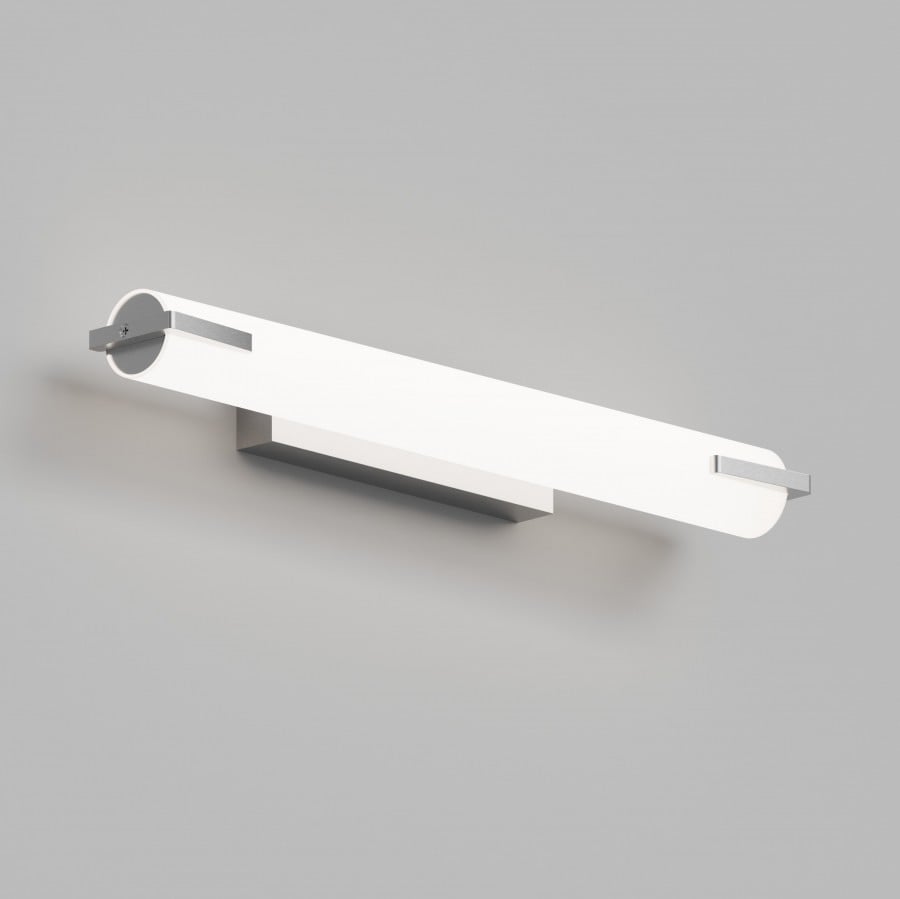

5172 LED

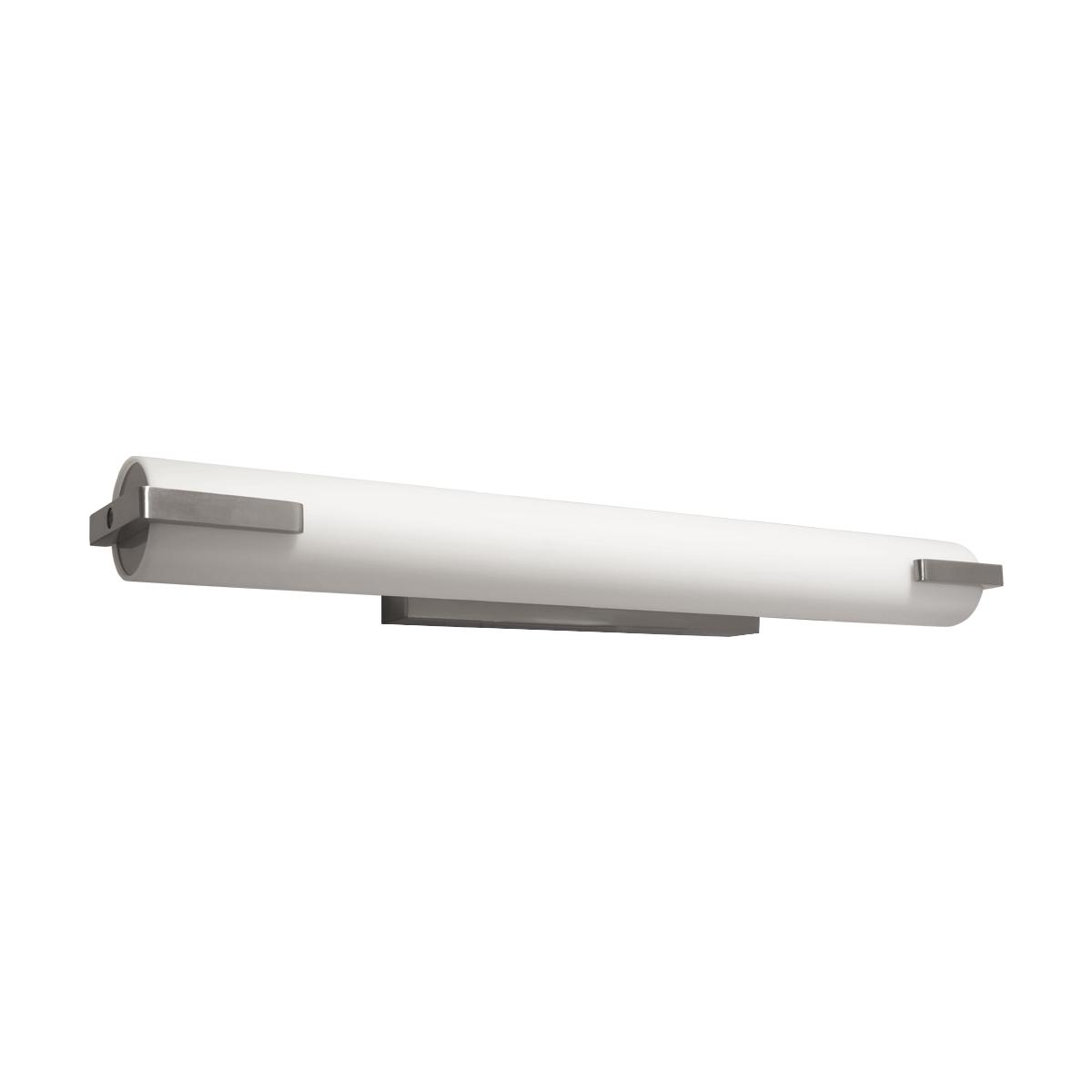

Brushed Nickel (BN) finish

PRODUCT INFORMATION

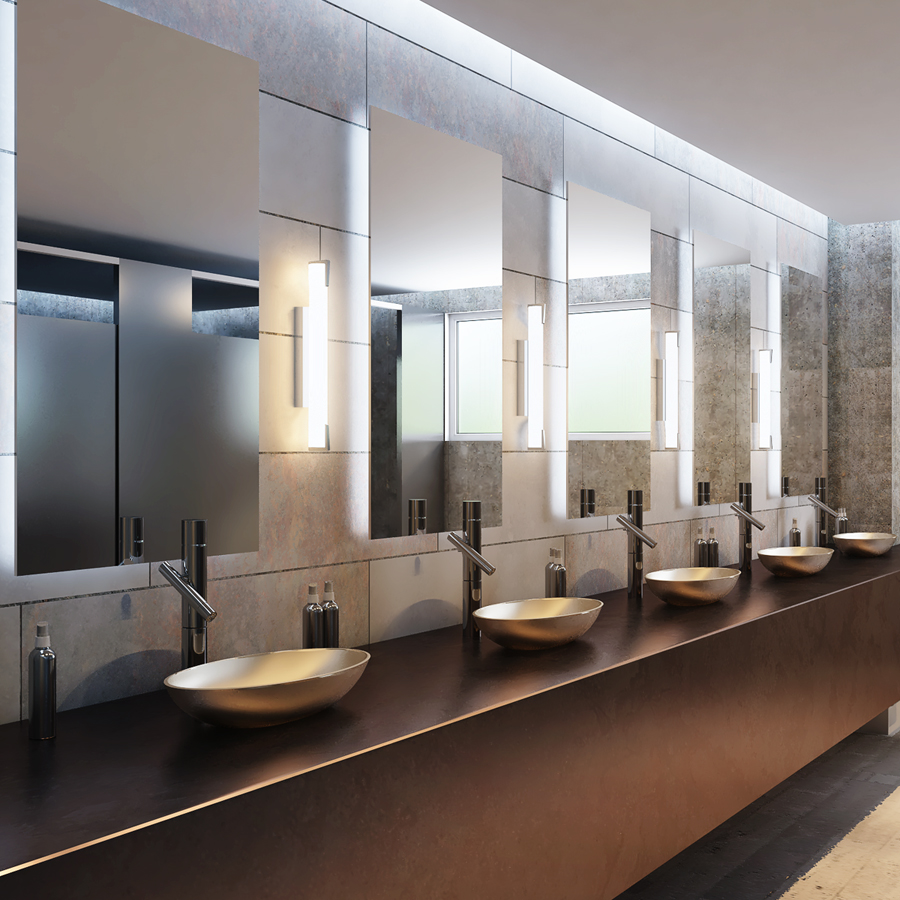

The 5172 is a crowd favorite because of its uniform illumination and modern makeup. Three sizes available. Can be mounted horizontally as a vanity or vertically as a sconce. Its slim housing is designed to mount to a 2x4-inch junction box but the unit also comes with a square back plate if needed to cover a 4x4-inch box.

  • CSA - Damp Location Listed
  • Mounted vertically or horizontally
SYMBOLS
OTHER VERSIONS

Product Description

The 5172 is a crowd favorite because of its uniform illumination and modern makeup. Three sizes available. Can be mounted horizontally as a vanity or vertically as a sconce. Its slim housing is designed to mount to a 2x4-inch junction box but the unit also comes with a square back plate if needed to cover a 4x4-inch box.

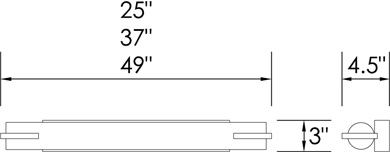

Line Drawing

Dimensions

25 size - 25"l x 3"w x 4.5"d
37 size - 37"l x 3"w x 4.5"d
49 size - 49"l x 3"w x 4.5"d

Featured Options and Controls

Choose Your Color Temperature

This model features select LED series wattages available in different color temperatures. Option code: 30K 35K 40K

90+ CRI

This model has wattages available in 3000K with a Color Rendering Index > 90. Option code: 90R

ENERGY STAR®

This model has wattages that are ENERGY STAR® certified. Option code: ES

Buy American Compliant

This option complies with the Buy American requirements of the American Reinvestment and Recovery Act (ARRA). Option code: BAC


Downloads

PRODUCT IMAGES


RESOURCES

Limited Warrany

Subject to the terms, conditions and all other details specified in this limited warranty, Brownlee Lighting warrants that all lighting products manufactured by Brownlee Lighting are free from defective materials and workmanship - and that under proper installation and operation at recommended operating conditions at rated voltage, they will be free from failure of lamp holders, starters, ballasts or other component part for the warranty period.

Warranty Period for all Brownlee Lighting products is two (2) years from the date of invoice, except as follows:

  • Brownlee Lighting LED products: Five (5) years from the date of invoice (see LED Notes 1 & 2 below).
  • Brownlee Lighting ENERGY STAR® qualified fluorescent products: Three (3) years from the date of invoice.
  • Lamps (CFL, linear fluorescent, HID, GU24-based LED, etc.) are not covered under this warranty or by Brownlee Lighting in any way. Lamp failure is excluded from the terms of this warranty - claims should be addressed directly with the lamp manufacturer.
  • The warranty on custom products can vary and is determined on a case by case basis - consult with factory for details on custom products prior to purchase.
LED Notes:

1) Exception: Models 7080, 7317, 7318, 7319 & 7322 with LED products: Three (3) years from the date of invoice (see Note 2 below).

2) LED boards are considered to have failed when 13% or more LED chips are not illuminated.

Damage incurred in transit, loading/unloading or from handling and/or installation is excluded from the terms of this warranty. Brownlee Lighting is not responsible for any failure or damage resulting from: product(s) being altered or modified, improperly installed, installed in applications for which not intended and/or recommended, abused or damaged by fire, vandalism, natural catastrophe, acts of God, or any other act(s) of the purchasing party and/or subsequent parties.

Proof of purchase is strictly required. Brownlee Lighting reserves the right to examine the reported defective or otherwise claimed product (and/or other supporting evidence satisfactory to Brownlee Lighting) in order to establish a claim under this warranty. Brownlee Lighting may require the return of any product claimed not to be as warranted to its headquarters, transportation prepaid by purchaser, to establish a claim under this warranty. The cost of labor for removing a Brownlee Lighting product and for installing a repaired or replacement product shall be borne by purchaser.

Brownlee Lighting covers only the repair or replacement of the defective part(s) covered under this warranty, to the original purchaser, and excludes any responsibility for consequential or incidental damages such as labor costs, travel time, freight expense, loss of profit, loss of time, etc., incurred by the purchaser and/or any other party. Replacement parts/fixtures provided under the terms of this warranty are warranted for the remainder of the original warranty which began at the original date of invoice.

This warranty is in lieu of all other warranties, expressed or implied.

LED PERFORMANCE

All LED Series feature a minimum operating temperature of -20°C / -4°F and maximum operating temperature of 40°C / 104°F.

Watts (Actual)CFL Equiv.Driver AmpsAmps @ 110VOutput (27K)Efficacy (27K)Output (30K)Efficacy (30K)Output (35K)Efficacy (35K)Output (40K)Efficacy (40K)
H16LED16.46217L400 mA0.14--207612620761262154131
F23LED22.71317L700 mA0.30--271512027621222853126
H25LED24.2225L600 mA0.20--320013232001323320137
H32LED31.6232L800 mA0.26--411913041191304274135
F45LED44.21332L700 mA0.60--511711655001245904134
*Output shown in lumens (lm). Efficacy shown in lumens per watt (lm/W). Lumen output measured from the source.
