5057 LED

PRODUCT INFORMATION

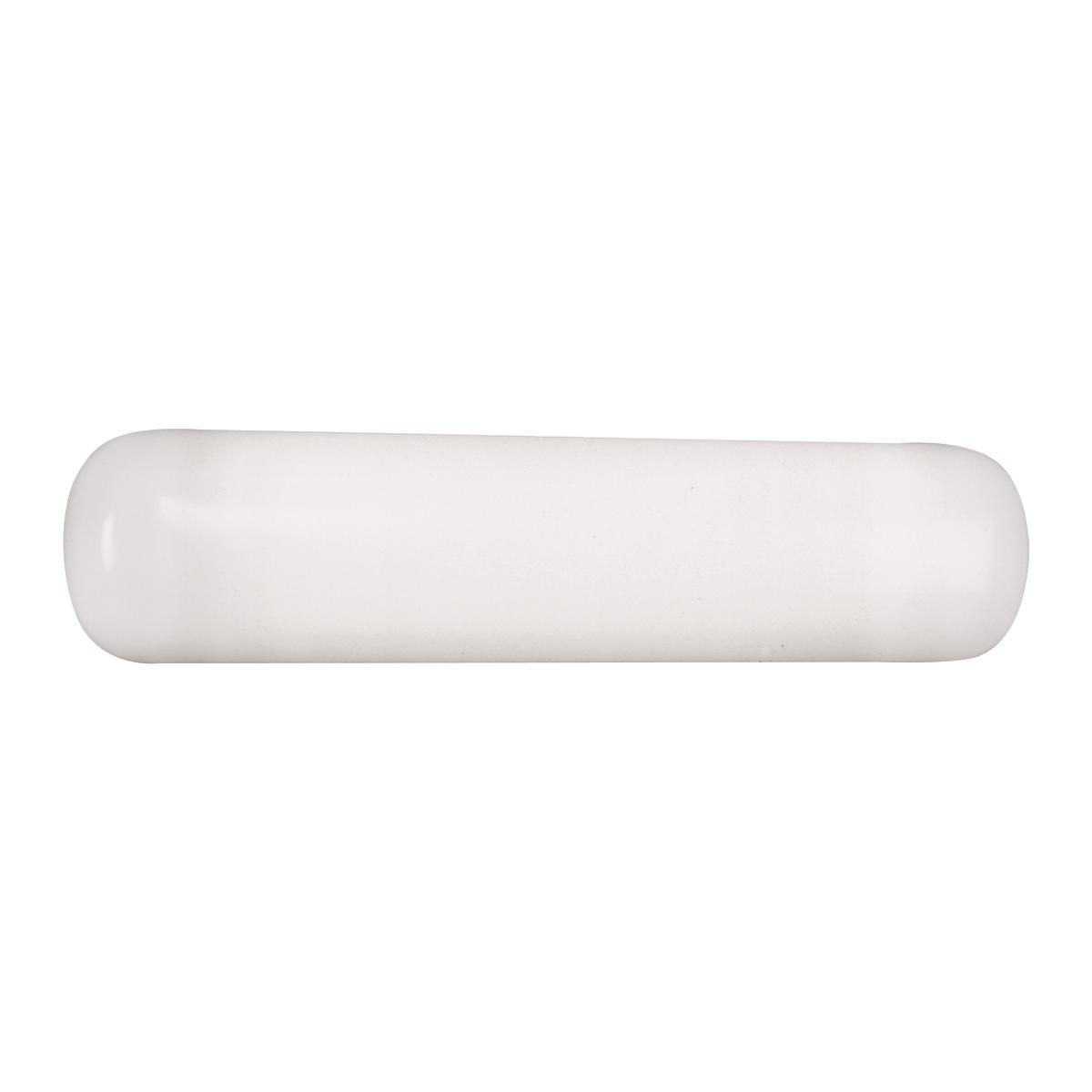

Popular cloud luminaire with contoured white acrylic diffuser providing soft, uniform light. Three sizes available. Refer to our 2045 and 2035 for coordinating ceiling flush mounts.

  • CSA - Damp Location Listed
  • Mounted on Ceiling or Wall
  • Mounted vertically or horizontally
SYMBOLS
OTHER VERSIONS

Product Description

Popular cloud luminaire with contoured white acrylic diffuser providing soft, uniform light. Three sizes available. Refer to our 2045 and 2035 for coordinating ceiling flush mounts.

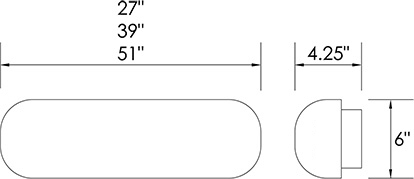

Line Drawing

Dimensions

27 size - 27"l x 6"w x 4.25"d
39 size - 39"l x 6"w x 4.25"d
51 size - 51"l x 6"w x 4.25"d

Featured Options and Controls

Choose Your Color Temperature

This model features select LED series wattages available in different color temperatures. Option code: 35K 30K 40K

90+ CRI

This model has wattages available in 3000K with a Color Rendering Index > 90. Option code: 90R

ENERGY STAR®

This model has wattages that are ENERGY STAR® certified. Option code: ES

Buy American Compliant

This option complies with the Buy American requirements of the American Reinvestment and Recovery Act (ARRA). Option code: BAC

Battery Backup

This model has wattages available with an emergency light power supply that ensures the light stays on even when the building loses power. Option code: BBI


Downloads

PRODUCT IMAGES


RESOURCES

Limited Warrany

Subject to the terms & conditions specified in this limited warranty, Brownlee Lighting (“BL”) warrants that all lighting products manufactured by BL are free from defective materials and workmanship, and that under normal installation and operating conditions when operated at rated voltage, they will be free from failure of lamp holders, starters, ballasts or other component part.

Warranty Period for all BL products is two (2) years from the date of invoice, except as follows:

  • ENERGY STAR® qualified fluorescent products are three (3) years from the date of invoice.
  • ENERGY STAR® qualified LED products are five (5) years from the date of invoice (see note 1).
  • LED products are five (5) years from the date of invoice (see note 1).
  • Models 7080, 7317, 7318, 7319 & 7322 with LED products are three (3) years from the date of invoice (see note 1).
  • GU24 Base LED & CFL products carry a limited warranty and claims should be addressed with the lamp manufacturer.

Lamp failure, damage incurred in transit or from handling is excluded from the terms of this warranty. BL is not responsible for any failure resulting from product(s) being altered, improperly installed, installed in applications for which not intended, abused or damaged by fire or natural catastrophe.

Our warranty covers only repair or replacement at our facility of the defective part(s), to the original purchaser, and excludes any responsibility for consequential or incidental damages such as labor costs, travel time, freight expense, loss of profit, etc., incurred by the purchaser.

Proof of purchase is required. BL reserves the right to examination of the reported defective product, or other proof, satisfactory to BL of the defect. This warranty is in lieu of all other warranties, expressed or implied.

Notes:

1) LED boards are considered to have failed when 13% or more LED chips are not illuminated.

LED PERFORMANCE

All LED Series feature a minimum operating temperature of -20°C / -4°F and maximum operating temperature of 40°C / 104°F.

Watts (Actual)CFL Equiv.Driver AmpsAmps @ 110VOutput (27K)Efficacy (27K)Output (30K)Efficacy (30K)Output (35K)Efficacy (35K)Output (40K)Efficacy (40K)
H16LED16.46217L400 mA0.14--207612620761262154131
H25LED24.2225L600 mA0.20--320013232001323320137
H32LED31.6232L800 mA0.26--411913041191304274135
*Output shown in lumens (lm). Efficacy shown in lumens per watt (lm/W). Lumen output measured from the source.
