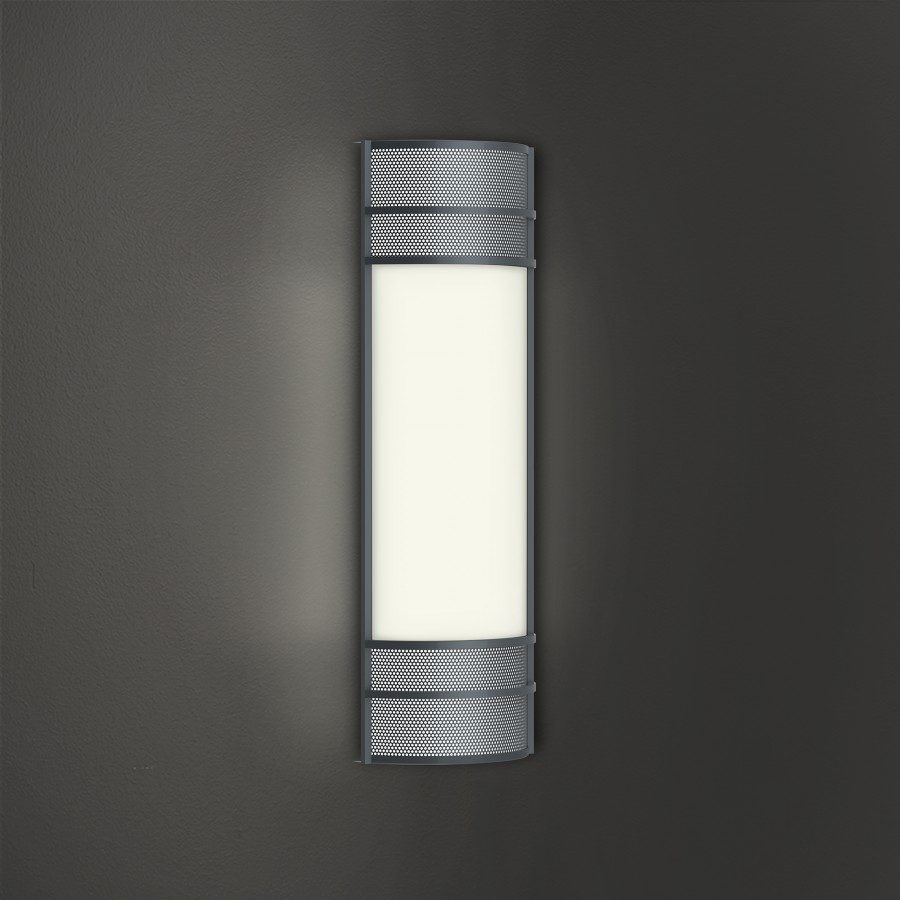

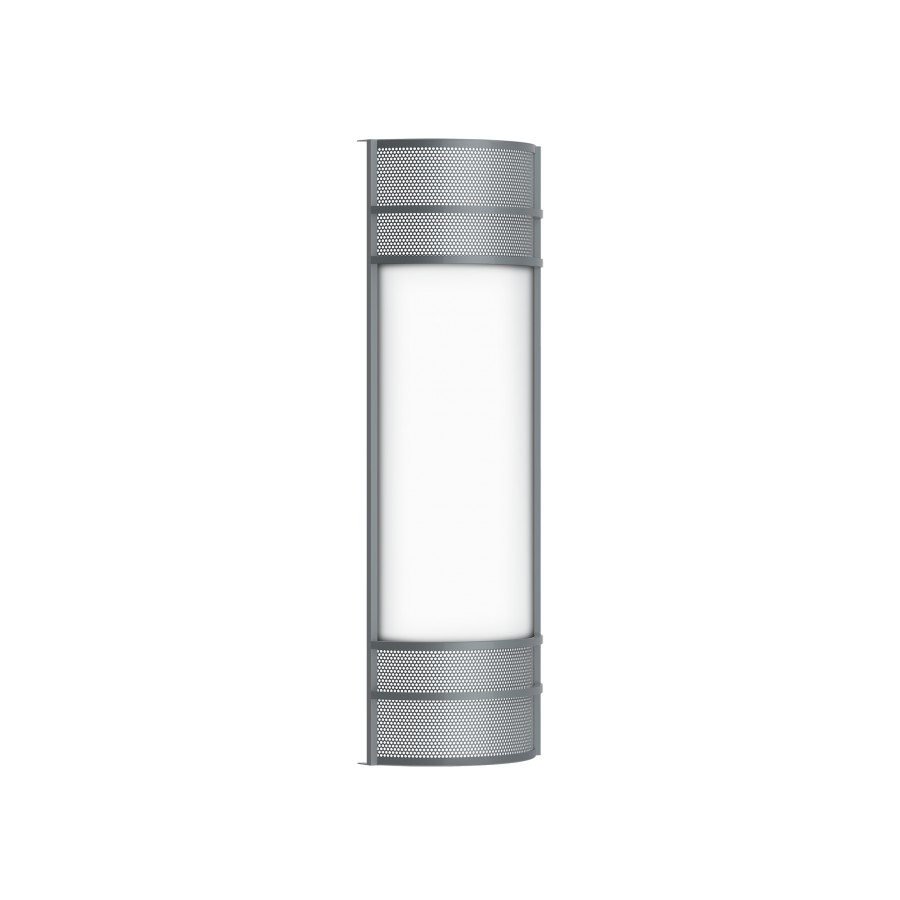

7333 LED

Nickel Tone (NT) finish

PRODUCT INFORMATION

Versatile, sleek, ADA compliant, wet listed. The perfect combination of architectural style and detail makes this fixture an excellent addition to any decor, both exterior and interior. Use the 7333 on your next facade, column, commercial office building, lobby or entryway.

  • CSA - Wet Location Listed
  • ADA compliant, low profile design
SYMBOLS
OTHER VERSIONS
USER PHOTOS

Product Description

Versatile, sleek, ADA compliant, wet listed. The perfect combination of architectural style and detail makes this fixture an excellent addition to any decor, both exterior and interior. Use the 7333 on your next facade, column, commercial office building, lobby or entryway.

Line Drawing

Dimensions

25"l x 8.25"w x 3.75"d

Featured Options and Controls

Choose Your Color Temperature

This model features select LED series wattages available in different color temperatures. Option code: 30K 35K 40K

ENERGY STAR®

This model has wattages that are ENERGY STAR® certified. Option code: ES

Buy American Compliant

This option complies with the Buy American requirements of the American Reinvestment and Recovery Act (ARRA). Option code: BAC

Extreme Cold Weather

This model has wattages available with Extreme Cold Weather for applications where the temperatures go as low as -40°F/-40° C. Option code: ECW


Downloads

PRODUCT IMAGES


RESOURCES

REVIT

PHOTOMETRICS

Limited Warrany

Subject to the terms & conditions specified in this limited warranty, Brownlee Lighting (“BL”) warrants that all lighting products manufactured by BL are free from defective materials and workmanship, and that under normal installation and operating conditions when operated at rated voltage, they will be free from failure of lamp holders, starters, ballasts or other component part.

Warranty Period for all BL products is two (2) years from the date of invoice, except as follows:

  • ENERGY STAR® qualified fluorescent products are three (3) years from the date of invoice.
  • ENERGY STAR® qualified LED products are five (5) years from the date of invoice (see note 1).
  • LED products are five (5) years from the date of invoice (see note 1).
  • Models 7080, 7317, 7318, 7319 & 7322 with LED products are three (3) years from the date of invoice (see note 1).
  • GU24 Base LED & CFL products carry a limited warranty and claims should be addressed with the lamp manufacturer.

Lamp failure, damage incurred in transit or from handling is excluded from the terms of this warranty. BL is not responsible for any failure resulting from product(s) being altered, improperly installed, installed in applications for which not intended, abused or damaged by fire or natural catastrophe.

Our warranty covers only repair or replacement at our facility of the defective part(s), to the original purchaser, and excludes any responsibility for consequential or incidental damages such as labor costs, travel time, freight expense, loss of profit, etc., incurred by the purchaser.

Proof of purchase is required. BL reserves the right to examination of the reported defective product, or other proof, satisfactory to BL of the defect. This warranty is in lieu of all other warranties, expressed or implied.

Notes:

1) LED boards are considered to have failed when 13% or more LED chips are not illuminated.

LED PERFORMANCE

All LED Series feature a minimum operating temperature of -20°C / -4°F and maximum operating temperature of 40°C / 104°F.

Watts (Actual)CFL Equiv.Driver AmpsAmps @ 110VOutput (27K)Efficacy (27K)Output (30K)Efficacy (30K)Output (35K)Efficacy (35K)Output (40K)Efficacy (40K)
F23LED22.71317L700 mA0.30--271512027621222853126
F45LED44.21332L700 mA0.60--511711655001245904134
*Output shown in lumens (lm). Efficacy shown in lumens per watt (lm/W). Lumen output measured from the source.
