7317 LED

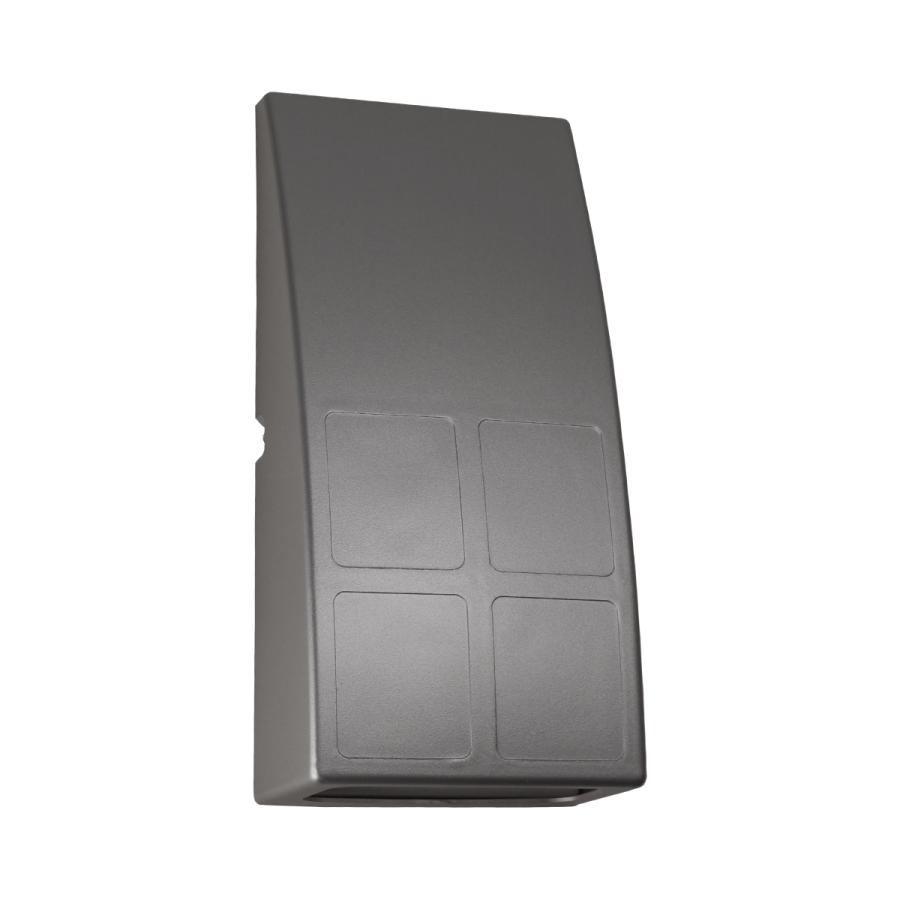

Gun Metal (GM) finish with No Diffuser (ND) diffuser

PRODUCT INFORMATION

The 7317 is an all around, full cutoff wall sconce which features polycarbonate construction and stainless steel hardware. Coastal friendly. Offered in a variety of optional finishes.

  • CSA - Wet Location Listed
  • ADA compliant, low profile design
DIFFUSERS
SYMBOLS
OTHER VERSIONS

Product Description

The 7317 is an all around, full cutoff wall sconce which features polycarbonate construction and stainless steel hardware. Coastal friendly. Offered in a variety of optional finishes.

Line Drawing

Dimensions

15"l x 7"w x 4"d

Featured Options and Controls

Choose Your Color Temperature

This model features select LED series wattages available in different color temperatures. Option code: 35K 27K 30K 40K

ENERGY STAR®

This model has wattages that are ENERGY STAR® certified. Option code: ES

Buy American Compliant

This option complies with the Buy American requirements of the American Reinvestment and Recovery Act (ARRA). Option code: BAC

Title 24 Compliant

This model has wattages that support Title 24 compliance. This option includes 0-10v dimming (DIM) and 90CRI (90R). Option code: T24

0-10V Dimming

This model has wattages available with an optional 0-10V dimming module. Option code: DIM

Triac Dimming

This model has wattages available with an optional Triac dimming module. Option code: DTR

Photo Control

This model has wattages available with Dusk-to-Dawn photo control to keep it off during the daytime and automatically turn it on at night. Option code: PO1 PO2


Downloads

PRODUCT IMAGES


RESOURCES

Limited Warrany

Subject to the terms & conditions specified in this limited warranty, Brownlee Lighting (“BL”) warrants that all lighting products manufactured by BL are free from defective materials and workmanship, and that under normal installation and operating conditions when operated at rated voltage, they will be free from failure of lamp holders, starters, ballasts or other component part.

Warranty Period for all BL products is two (2) years from the date of invoice, except as follows:

  • ENERGY STAR® qualified fluorescent products are three (3) years from the date of invoice.
  • ENERGY STAR® qualified LED products are five (5) years from the date of invoice (see note 1).
  • LED products are five (5) years from the date of invoice (see note 1).
  • Models 7080, 7317, 7318, 7319 & 7322 with LED products are three (3) years from the date of invoice (see note 1).
  • GU24 Base LED & CFL products carry a limited warranty and claims should be addressed with the lamp manufacturer.

Lamp failure, damage incurred in transit or from handling is excluded from the terms of this warranty. BL is not responsible for any failure resulting from product(s) being altered, improperly installed, installed in applications for which not intended, abused or damaged by fire or natural catastrophe.

Our warranty covers only repair or replacement at our facility of the defective part(s), to the original purchaser, and excludes any responsibility for consequential or incidental damages such as labor costs, travel time, freight expense, loss of profit, etc., incurred by the purchaser.

Proof of purchase is required. BL reserves the right to examination of the reported defective product, or other proof, satisfactory to BL of the defect. This warranty is in lieu of all other warranties, expressed or implied.

Notes:

1) LED boards are considered to have failed when 13% or more LED chips are not illuminated.

LED PERFORMANCE

All LED Series feature a minimum operating temperature of -20°C / -4°F and maximum operating temperature of 40°C / 104°F.

Watts (Actual)CFL Equiv.Driver AmpsAmps @ 110VOutput (27K)Efficacy (27K)Output (30K)Efficacy (30K)Output (35K)Efficacy (35K)Output (40K)Efficacy (40K)
B6LED5.9813Q350 mA0.05622102676111698114698114
B12LED11.8426Q350 mA0.101266107137611614221201421120
*Output shown in lumens (lm). Efficacy shown in lumens per watt (lm/W). Lumen output measured from the source.
