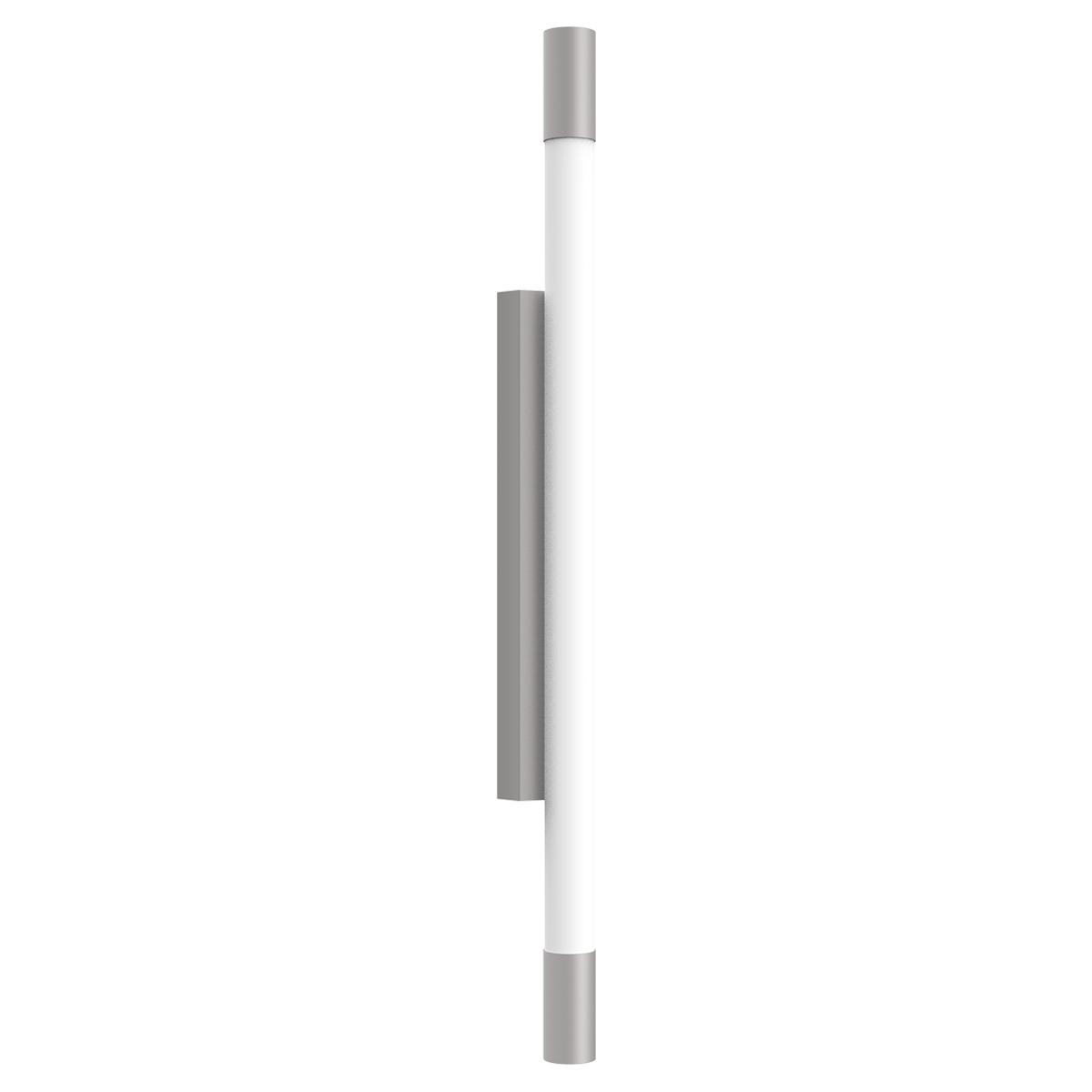

BEAM LED

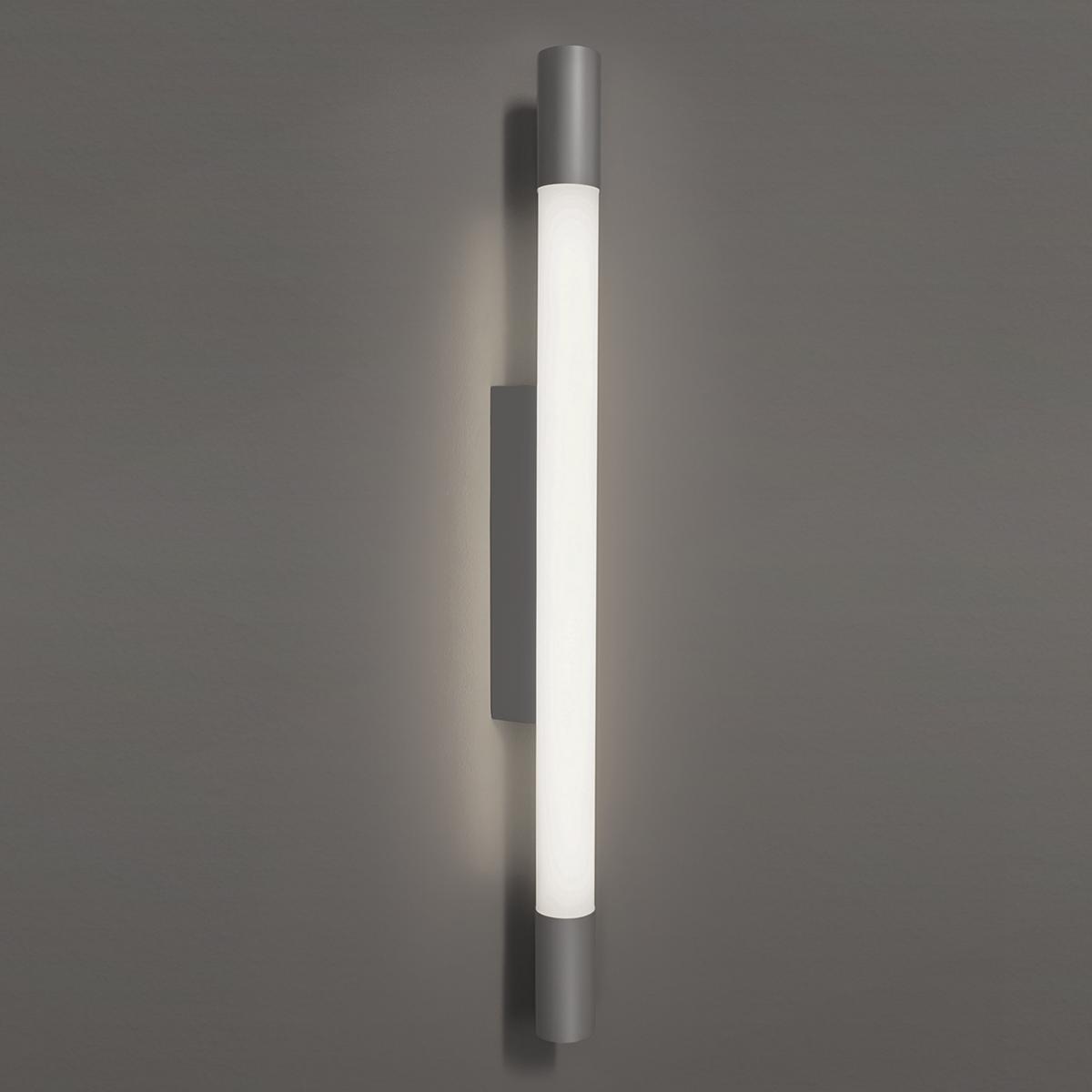

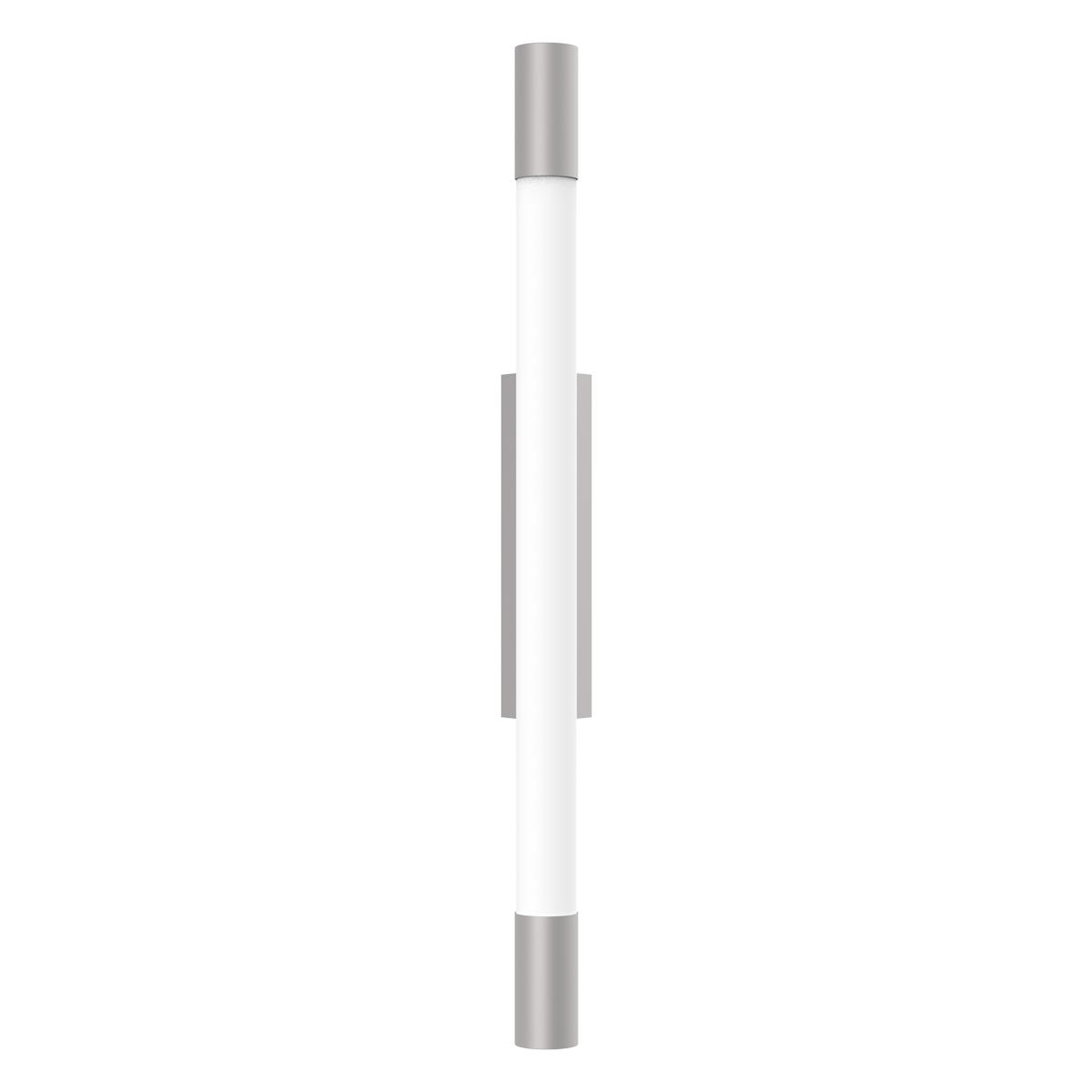

Nickel Tone (NT) finish in 45 size

PRODUCT INFORMATION

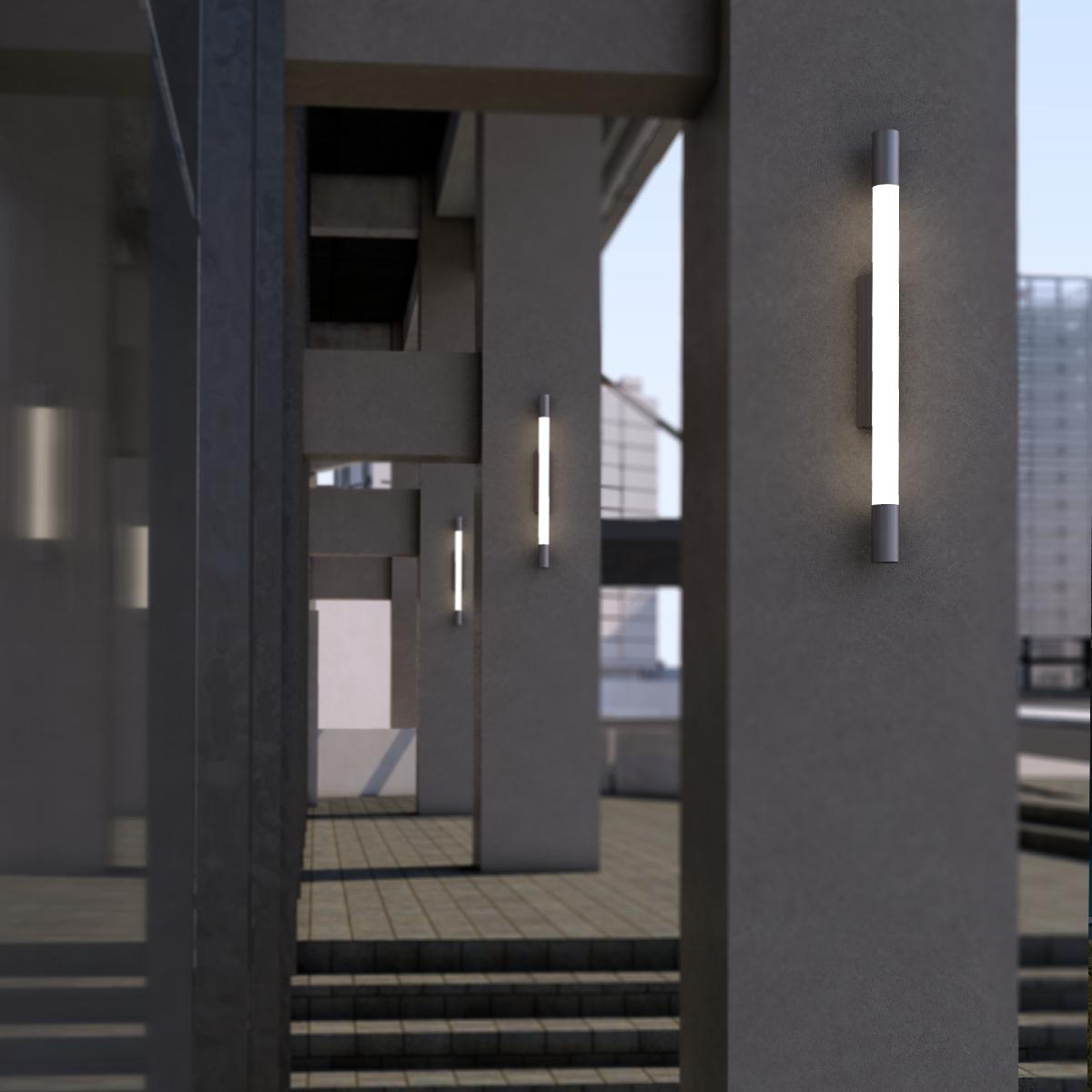

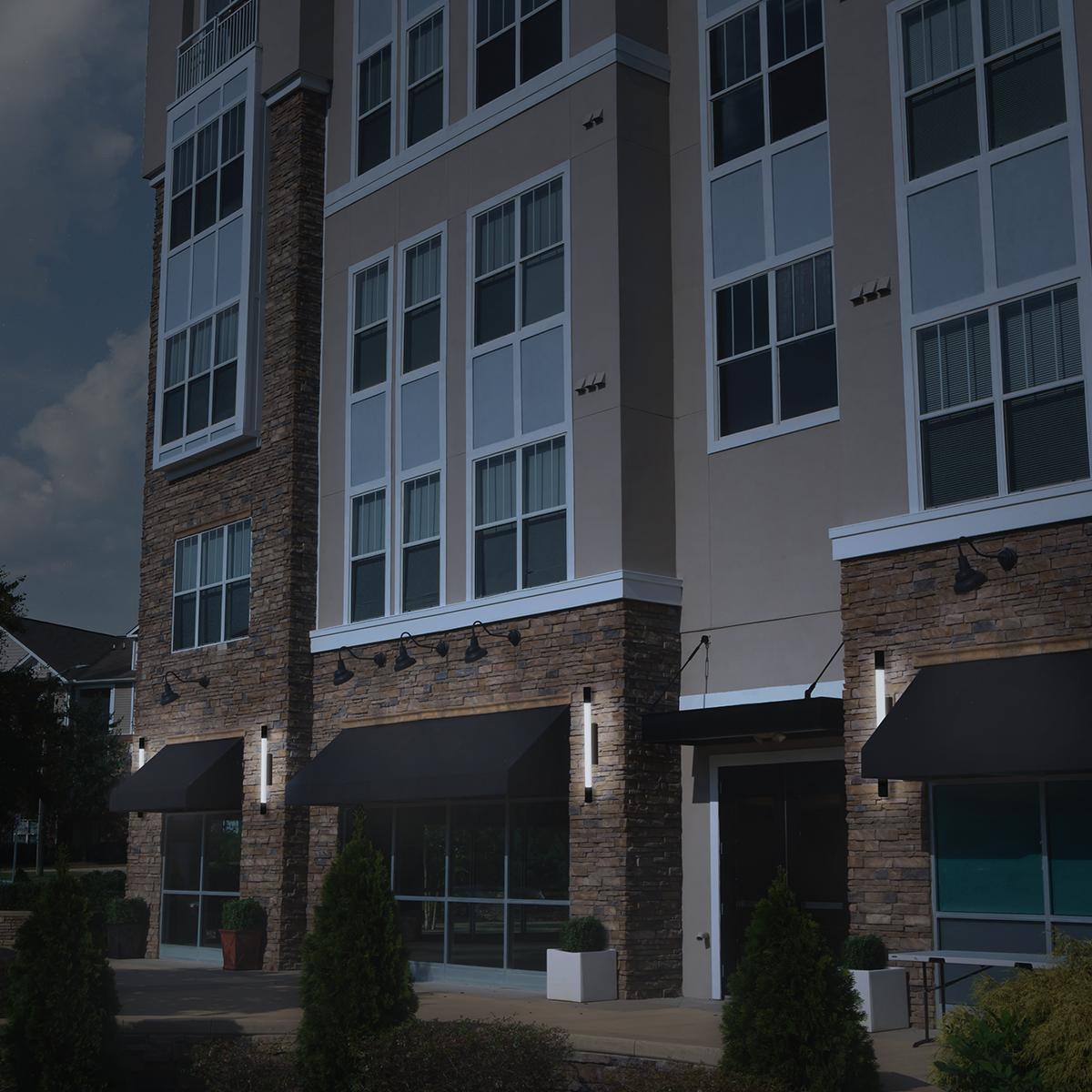

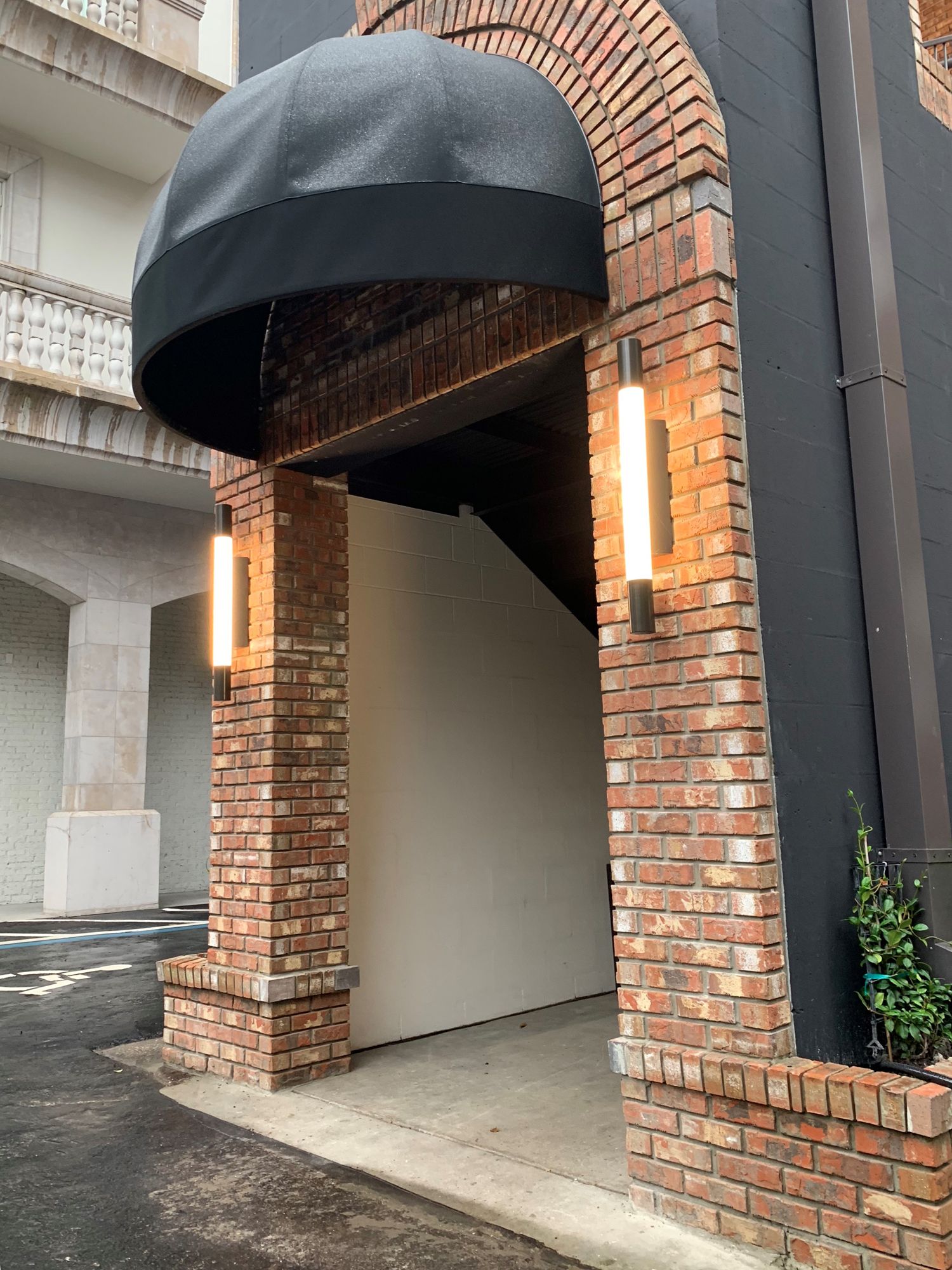

BEAM LED (Model #: 7176) is a wet location rated product featuring a modern, architectural aesthetic that can be utilized in a variety of applications. While intended for decorative exterior facades, it is also ideal for commercial interiors, bathrooms, healthcare and even stairwells (available with integral battery backup). Heavy duty aluminum construction, perfectly illuminated white acrylic diffuser, tamper resistant stainless steel hardware, dedicated 120-277V LED components - commercial-grade all the way around.

  • CSA - Wet Location Listed
SYMBOLS

Product Description

BEAM LED (Model #: 7176) is a wet location rated product featuring a modern, architectural aesthetic that can be utilized in a variety of applications. While intended for decorative exterior facades, it is also ideal for commercial interiors, bathrooms, healthcare and even stairwells (available with integral battery backup). Heavy duty aluminum construction, perfectly illuminated white acrylic diffuser, tamper resistant stainless steel hardware, dedicated 120-277V LED components - commercial-grade all the way around.

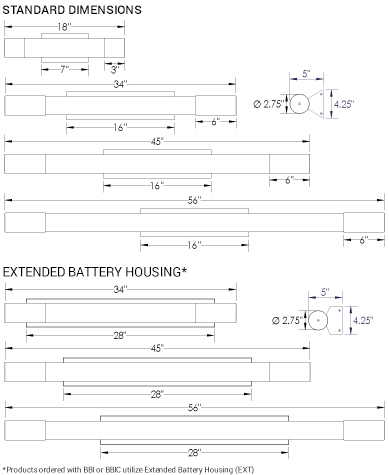

Line Drawing

Dimensions

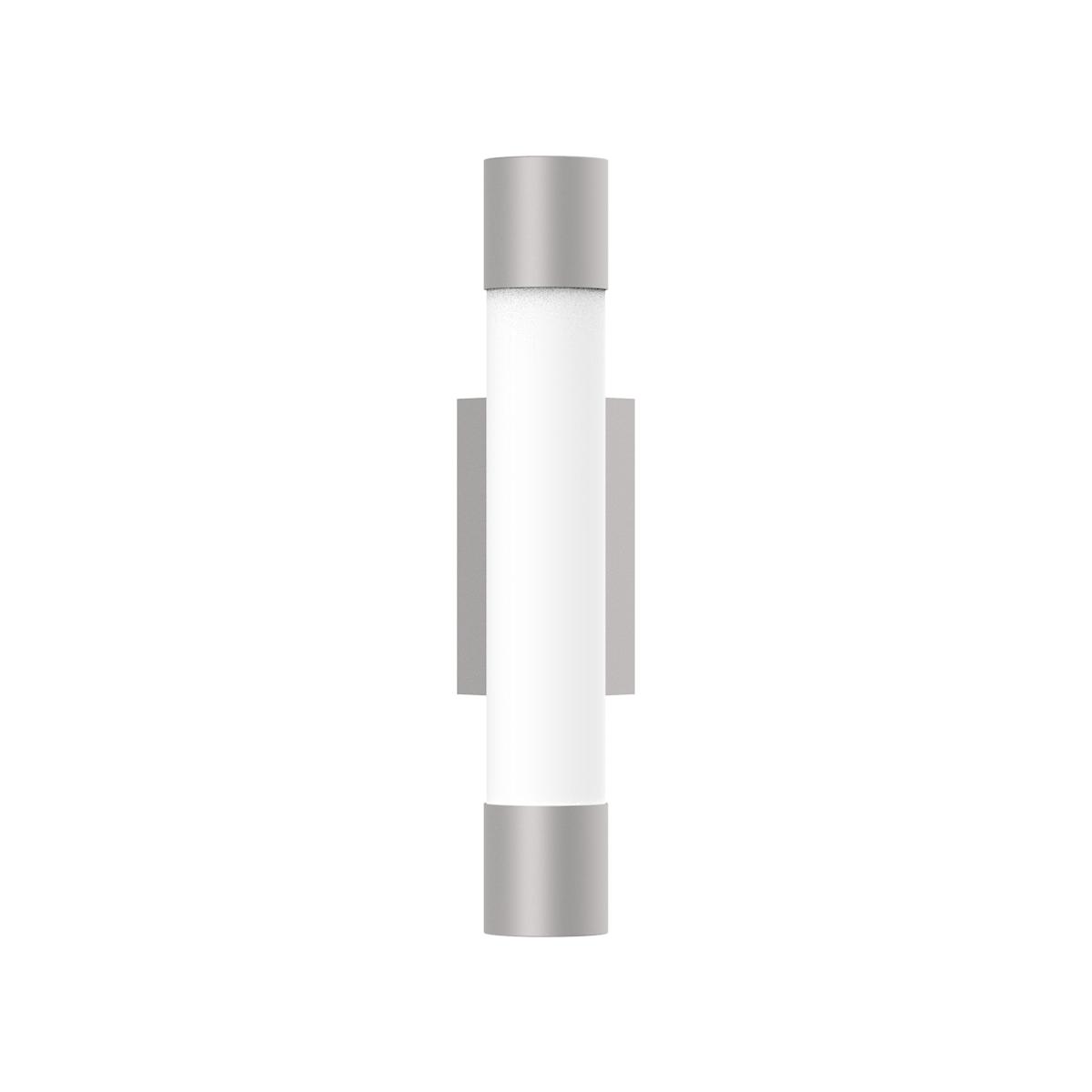

18 size - 18"l x 4.25"w x 5"d

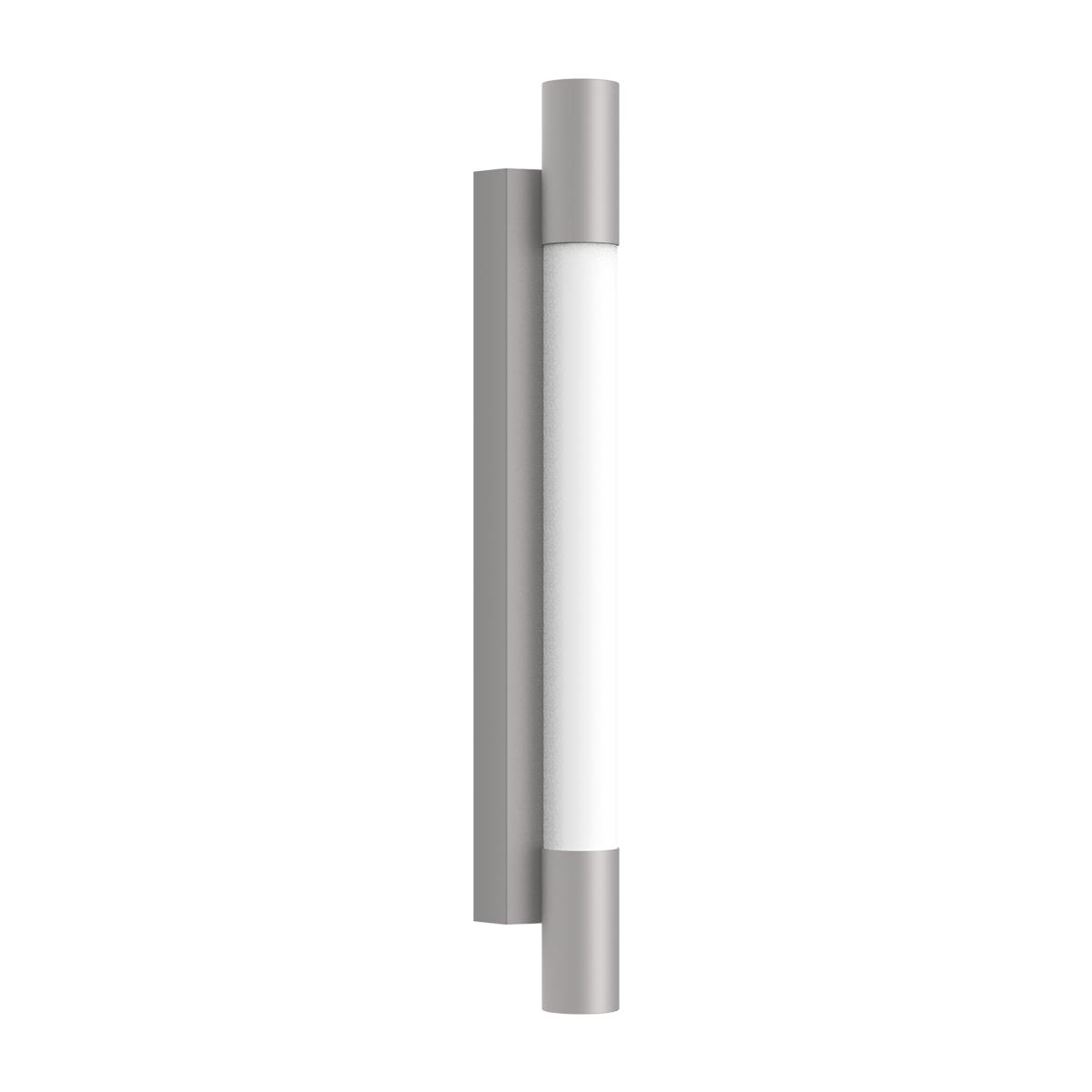

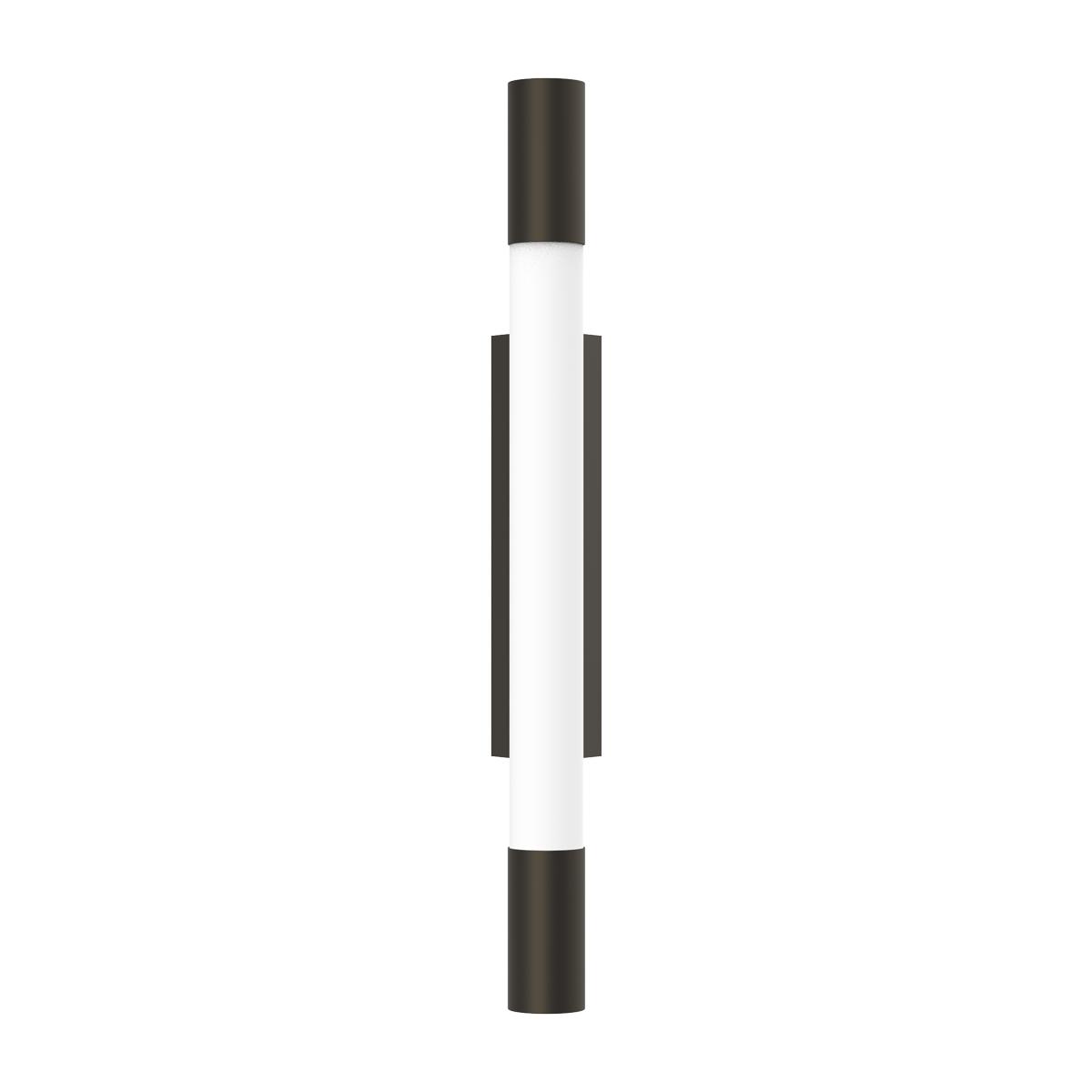

34 size - 34"l x 4.25"w x 5"d
45 size - 45"l x 4.25"w x 5"d
56 size - 56"l x 4.25"w x 5"d

Featured Options and Controls

Choose Your Color Temperature

This model features select LED series wattages available in different color temperatures. Option code: 30K 35K 40K

ENERGY STAR®

This model has wattages that are ENERGY STAR® certified. Option code: ES

Buy American Compliant

This option complies with the Buy American requirements of the American Reinvestment and Recovery Act (ARRA). Option code: BAC

Triac Dimming

This model has wattages available with an optional Triac dimming module. Option code: DTR

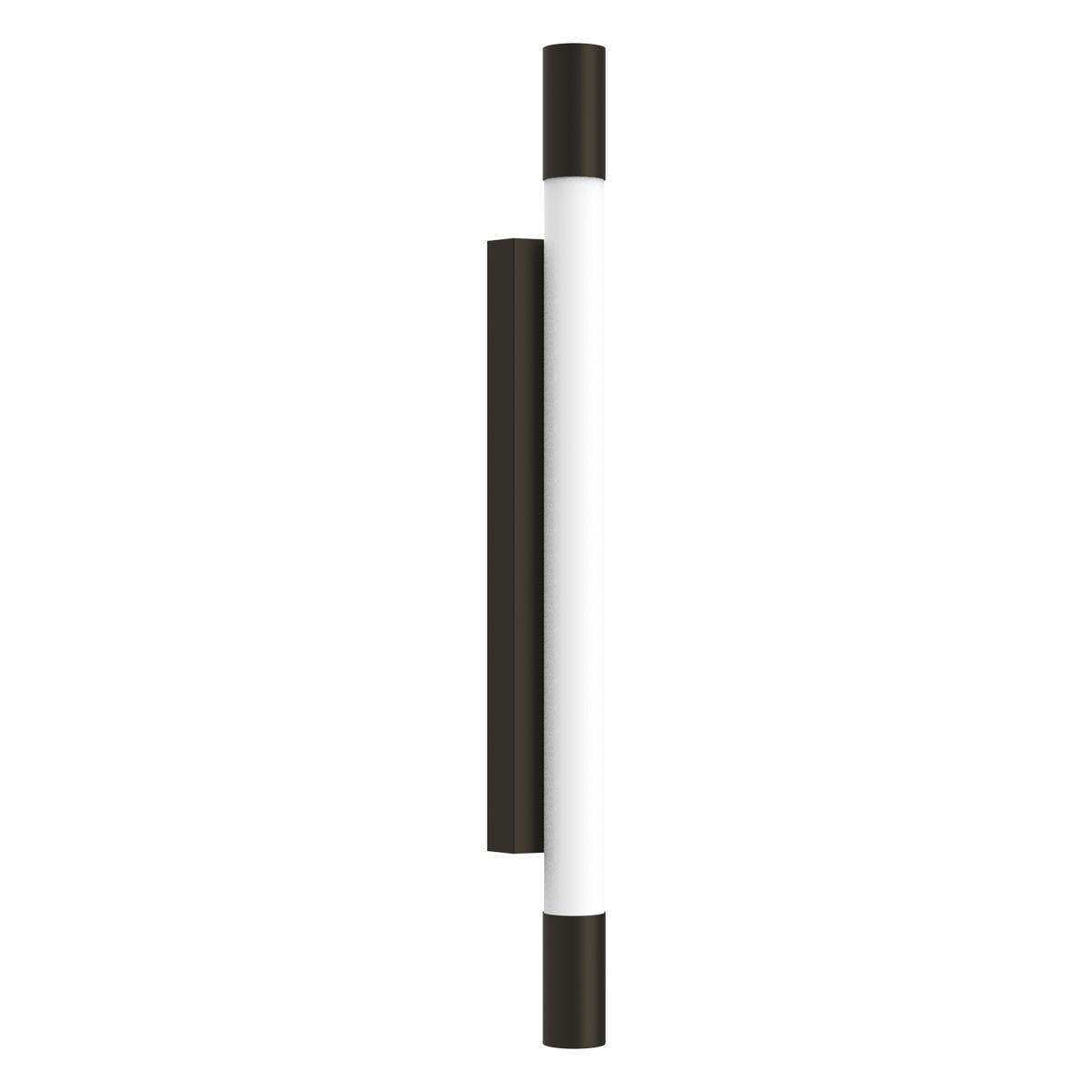

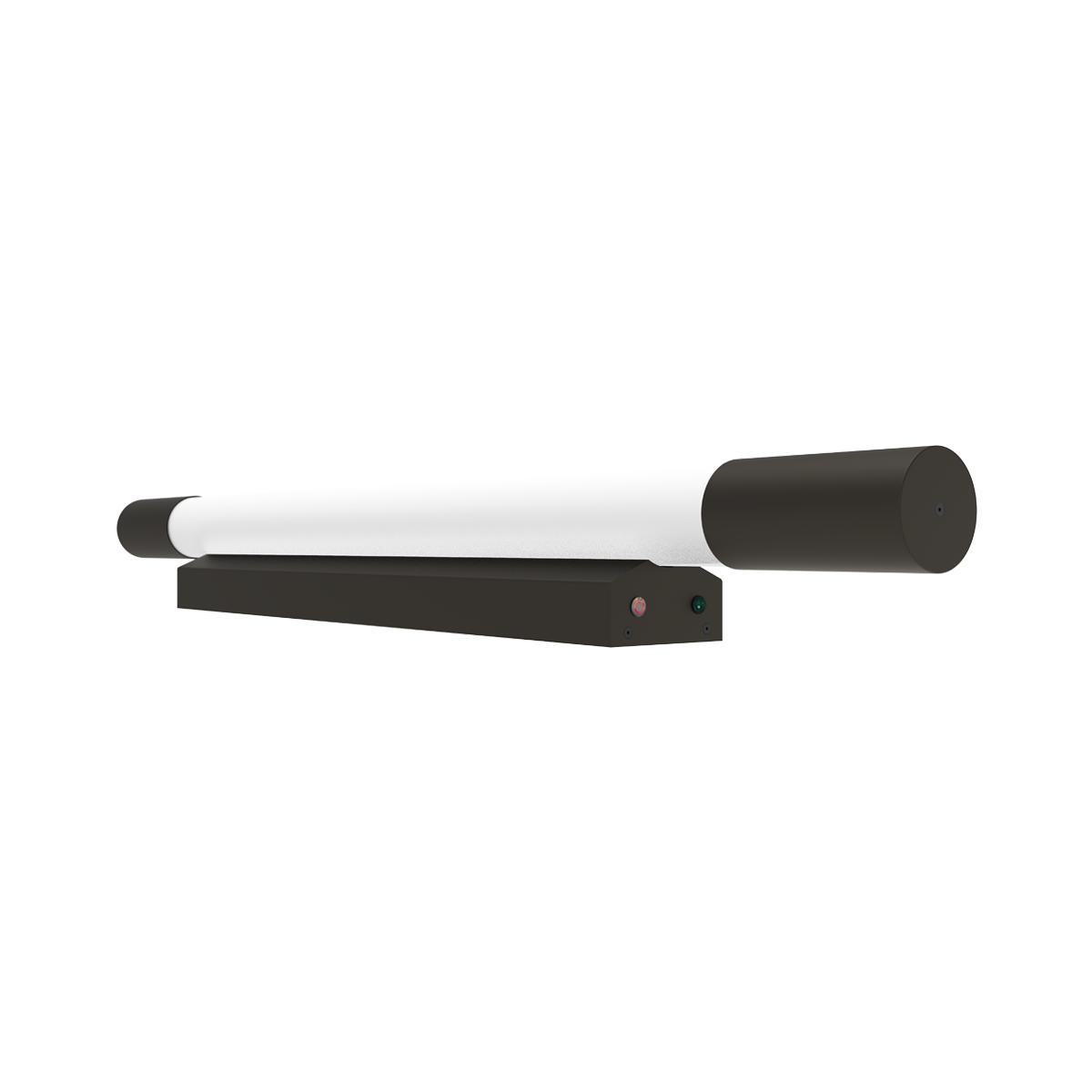

Battery Backup

This model has wattages available with an emergency light power supply that ensures the light stays on even when the building loses power. Option code: BBI

Cold Weather Battery

This model has wattages available with a cold weather battery option for applications in colder climates where the temperatures go as low as -4°F/-20° C. Option code: BBIC

Extreme Cold Weather

This model has wattages available with Extreme Cold Weather for applications where the temperatures go as low as -40°F/-40° C. Option code: ECW


Limited Warrany

Subject to the terms, conditions and all other details specified in this limited warranty, Brownlee Lighting warrants that all lighting products manufactured by Brownlee Lighting are free from defective materials and workmanship - and that under proper installation and operation at recommended operating conditions at rated voltage, they will be free from failure of lamp holders, starters, ballasts or other component part for the warranty period.

Warranty Period for all Brownlee Lighting products is two (2) years from the date of invoice, except as follows:

  • Brownlee Lighting LED products: Five (5) years from the date of invoice (see LED Notes 1 & 2 below).
  • Brownlee Lighting ENERGY STAR® qualified fluorescent products: Three (3) years from the date of invoice.
  • Lamps (CFL, linear fluorescent, HID, GU24-based LED, etc.) are not covered under this warranty or by Brownlee Lighting in any way. Lamp failure is excluded from the terms of this warranty - claims should be addressed directly with the lamp manufacturer.
  • The warranty on custom products can vary and is determined on a case by case basis - consult with factory for details on custom products prior to purchase.
LED Notes:

1) Exception: Models 7080, 7317, 7318, 7319 & 7322 with LED products: Three (3) years from the date of invoice (see Note 2 below).

2) LED boards are considered to have failed when 13% or more LED chips are not illuminated.

Damage incurred in transit, loading/unloading or from handling and/or installation is excluded from the terms of this warranty. Brownlee Lighting is not responsible for any failure or damage resulting from: product(s) being altered or modified, improperly installed, installed in applications for which not intended and/or recommended, abused or damaged by fire, vandalism, natural catastrophe, acts of God, or any other act(s) of the purchasing party and/or subsequent parties.

Proof of purchase is strictly required. Brownlee Lighting reserves the right to examine the reported defective or otherwise claimed product (and/or other supporting evidence satisfactory to Brownlee Lighting) in order to establish a claim under this warranty. Brownlee Lighting may require the return of any product claimed not to be as warranted to its headquarters, transportation prepaid by purchaser, to establish a claim under this warranty. The cost of labor for removing a Brownlee Lighting product and for installing a repaired or replacement product shall be borne by purchaser.

Brownlee Lighting covers only the repair or replacement of the defective part(s) covered under this warranty, to the original purchaser, and excludes any responsibility for consequential or incidental damages such as labor costs, travel time, freight expense, loss of profit, loss of time, etc., incurred by the purchaser and/or any other party. Replacement parts/fixtures provided under the terms of this warranty are warranted for the remainder of the original warranty which began at the original date of invoice.

This warranty is in lieu of all other warranties, expressed or implied.

LED PERFORMANCE

All LED Series feature a minimum operating temperature of -20°C / -4°F and maximum operating temperature of 40°C / 104°F.

Watts (Actual)CFL Equiv.Driver AmpsAmps @ 110VOutput (27K)Efficacy (27K)Output (30K)Efficacy (30K)Output (35K)Efficacy (35K)Output (40K)Efficacy (40K)
H8LED7.8817L200 mA0.07--103813210381321077137
H16LED16.46217L400 mA0.14--207612620761262154131
F23LED22.71317L700 mA0.30--271512027621222853126
H25LED24.2225L600 mA0.20--320013232001323320137
H32LED31.6232L800 mA0.26--411913041191304274135
F45LED44.21332L700 mA0.60--511711655001245904134
*Output shown in lumens (lm). Efficacy shown in lumens per watt (lm/W). Lumen output measured from the source.
