2600 LED

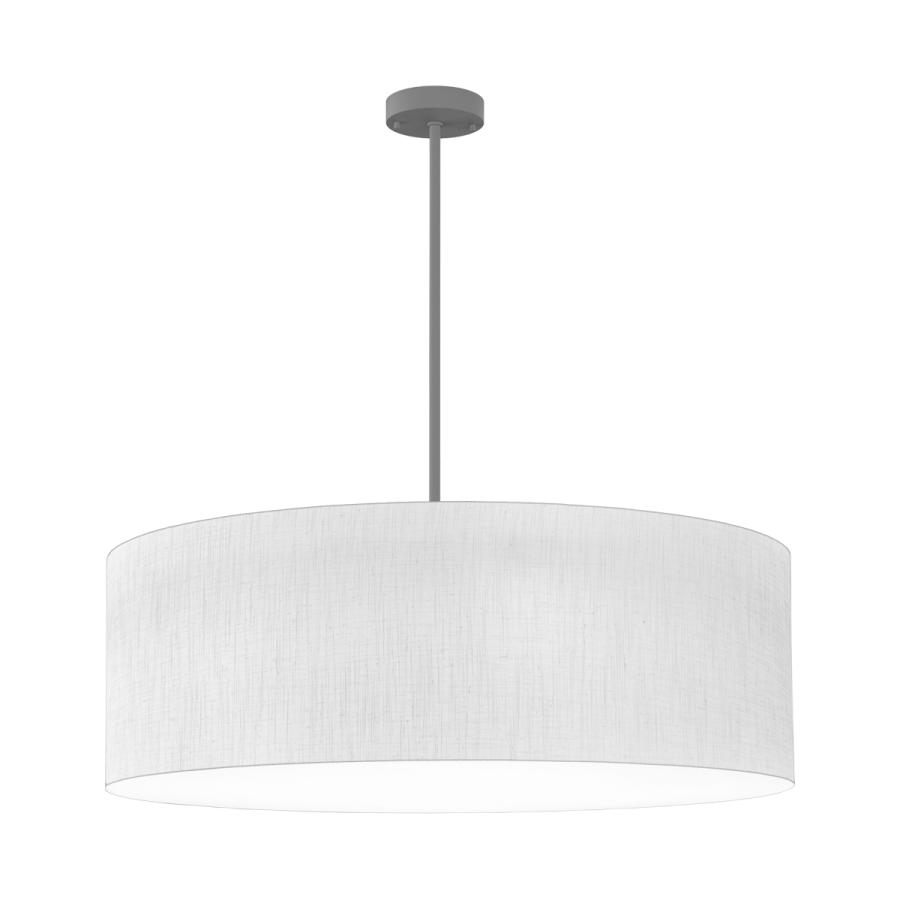

Nickel Tone (NT) finish with White Linen (WHL) diffuser and Single Stem Mount (SSM) suspension

PRODUCT INFORMATION

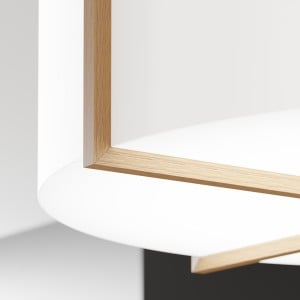

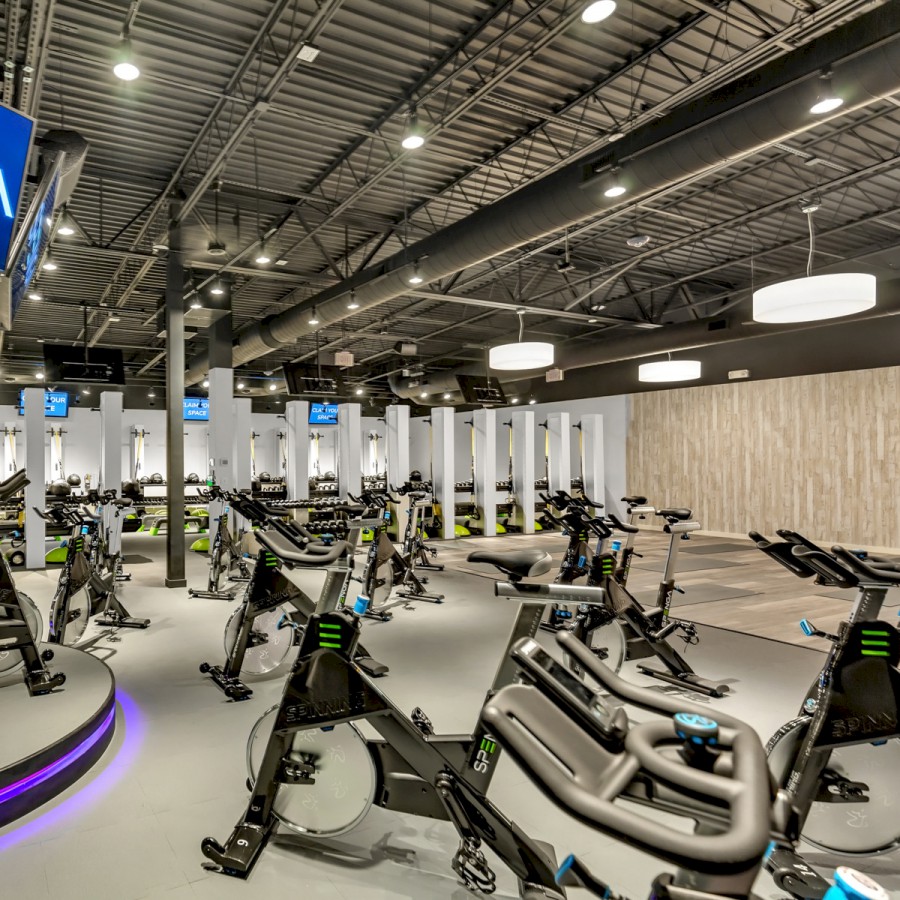

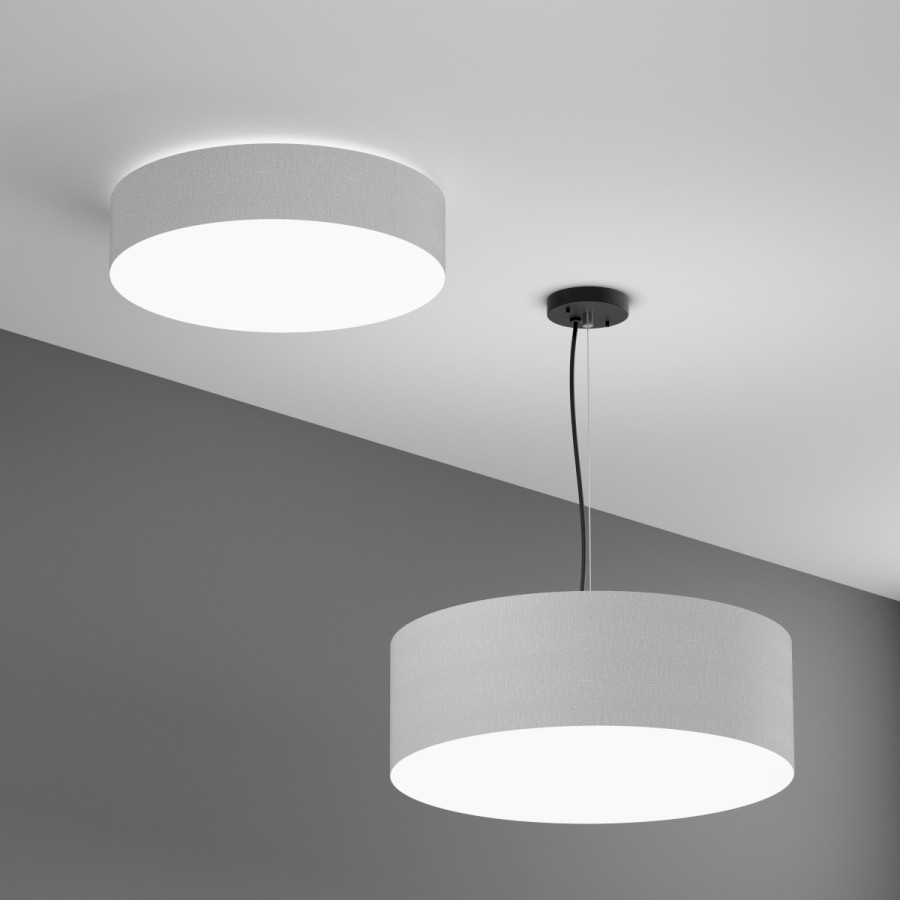

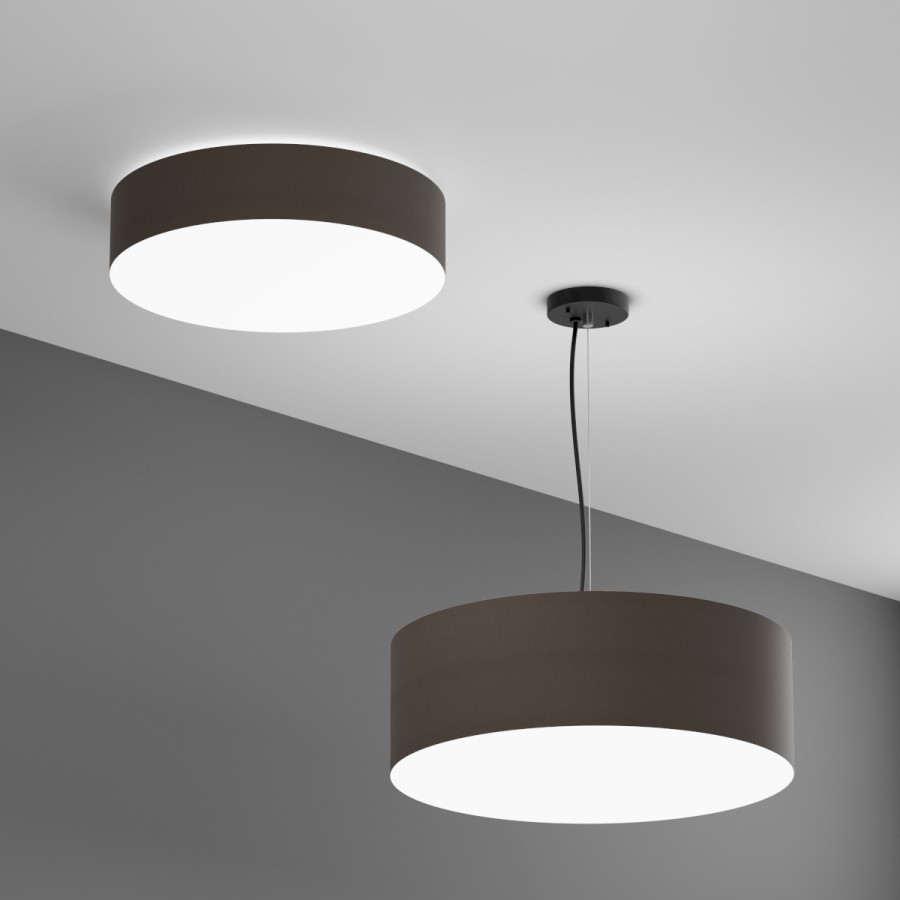

The 2600 high performance pendant is far from your ordinary "fabric drum." The drum is formed with high quality white acrylic with fabric bonded to its exterior, creating a durable yet decorative solution to a variety of challenging lighting applications. Five sizes ranging from 24 inches to 48 inches, five diffuser options and an array of controls and other options to choose from. Given the size range, this unit is a spec locker for common areas, offices, conference rooms, libraries, lobbies, corridors and more. Refer to the 2340 for a flush mount version of this product.

  • CSA - Dry Location Listed
SYMBOLS
OTHER VERSIONS

Product Description

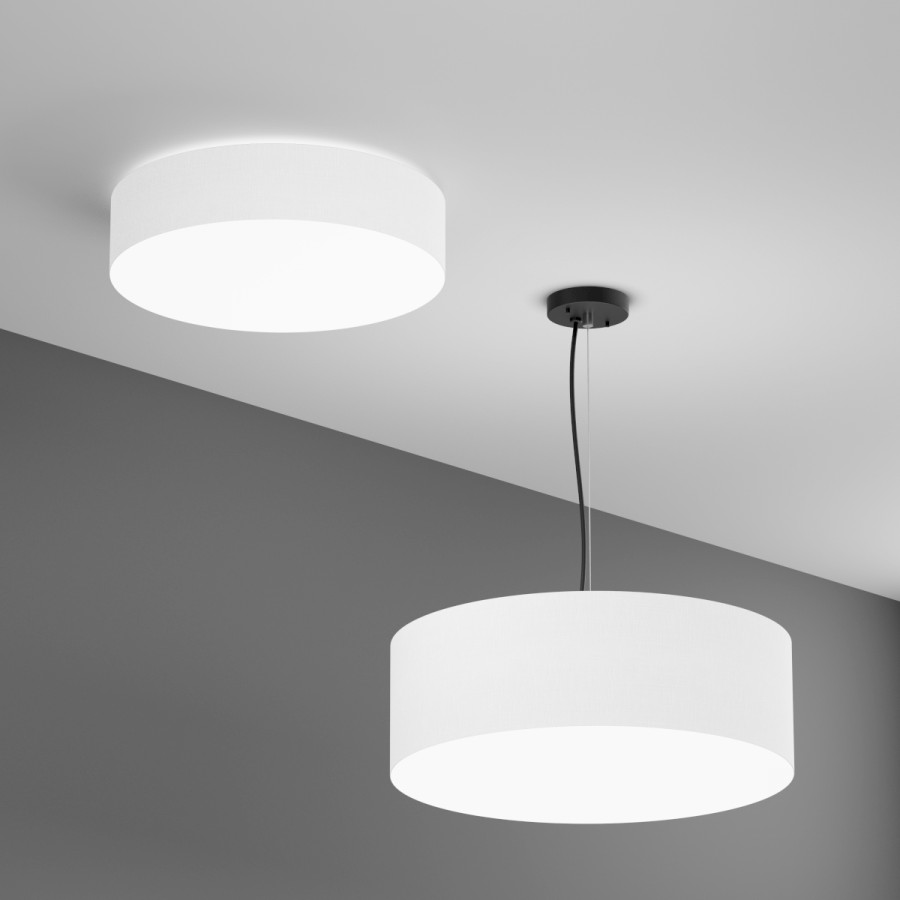

The 2600 high performance pendant is far from your ordinary "fabric drum." The drum is formed with high quality white acrylic with fabric bonded to its exterior, creating a durable yet decorative solution to a variety of challenging lighting applications. Five sizes ranging from 24 inches to 48 inches, five diffuser options and an array of controls and other options to choose from. Given the size range, this unit is a spec locker for common areas, offices, conference rooms, libraries, lobbies, corridors and more. Refer to the 2340 for a flush mount version of this product.

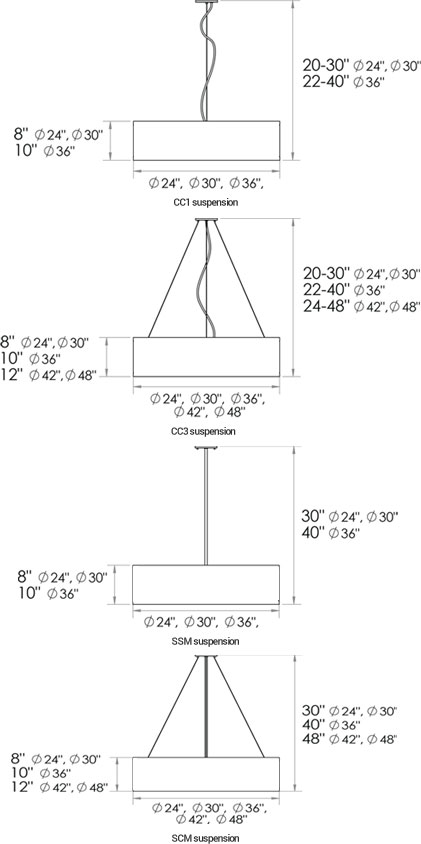

Line Drawing

Dimensions

24 size - 24"dia x 30"d
30 size - 30"dia x 30"d
36 size - 36"dia x 40"d
42 size - 42"dia x 48"d
48 size - 48"dia x 48"d

Featured Options and Controls

Choose Your Color Temperature

This model features select LED series wattages available in different color temperatures. Option code: 35K 27K 30K 40K

90+ CRI

This model has wattages available in 3000K with a Color Rendering Index > 90. Option code: 90R

ENERGY STAR®

This model has wattages that are ENERGY STAR® certified. Option code: ES

Buy American Compliant

This option complies with the Buy American requirements of the American Reinvestment and Recovery Act (ARRA). Option code: BAC

Title 24 Compliant

This model has wattages that support Title 24 compliance. This option includes 0-10v dimming (DIM) and 90CRI (90R). Option code: T24

DALI

This model has wattages available with DALI compatibility. Option code: DALI

0-10V Dimming

This model has wattages available with an optional 0-10V dimming module. Option code: DIM

Triac Dimming

This model has wattages available with an optional Triac dimming module. Option code: DTR

Cord and Cable Extension Kits

Need more overall height? This model is available with optional 10' and 20' Cord & Cable Extension Kits. Option code: C10 C20

Stem Extension Kits

Need more overall height? This model is available with optional 1' and 2' Stem Extension Kits. Option code: ST1 ST2


Limited Warrany

Subject to the terms & conditions specified in this limited warranty, Brownlee Lighting (“BL”) warrants that all lighting products manufactured by BL are free from defective materials and workmanship, and that under normal installation and operating conditions when operated at rated voltage, they will be free from failure of lamp holders, starters, ballasts or other component part.

Warranty Period for all BL products is two (2) years from the date of invoice, except as follows:

  • ENERGY STAR® qualified fluorescent products are three (3) years from the date of invoice.
  • ENERGY STAR® qualified LED products are five (5) years from the date of invoice (see note 1).
  • LED products are five (5) years from the date of invoice (see note 1).
  • Models 7080, 7317, 7318, 7319 & 7322 with LED products are three (3) years from the date of invoice (see note 1).
  • GU24 Base LED & CFL products carry a limited warranty and claims should be addressed with the lamp manufacturer.

Lamp failure, damage incurred in transit or from handling is excluded from the terms of this warranty. BL is not responsible for any failure resulting from product(s) being altered, improperly installed, installed in applications for which not intended, abused or damaged by fire or natural catastrophe.

Our warranty covers only repair or replacement at our facility of the defective part(s), to the original purchaser, and excludes any responsibility for consequential or incidental damages such as labor costs, travel time, freight expense, loss of profit, etc., incurred by the purchaser.

Proof of purchase is required. BL reserves the right to examination of the reported defective product, or other proof, satisfactory to BL of the defect. This warranty is in lieu of all other warranties, expressed or implied.

Notes:

1) LED boards are considered to have failed when 13% or more LED chips are not illuminated.

LED PERFORMANCE

All LED Series feature a minimum operating temperature of -20°C / -4°F and maximum operating temperature of 40°C / 104°F.

Watts (Actual)CFL Equiv.Driver AmpsAmps @ 110VOutput (27K)Efficacy (27K)Output (30K)Efficacy (30K)Output (35K)Efficacy (35K)Output (40K)Efficacy (40K)
C37LED36.9326Q500 mA0.30324488370110138371043906106
C49LED47.6426Q500 mA0.40432691493410451161075208109
H63LED63.2432L800 mA0.53--805613080561308549135
*Output shown in lumens (lm). Efficacy shown in lumens per watt (lm/W). Lumen output measured from the source.
