2300 LED

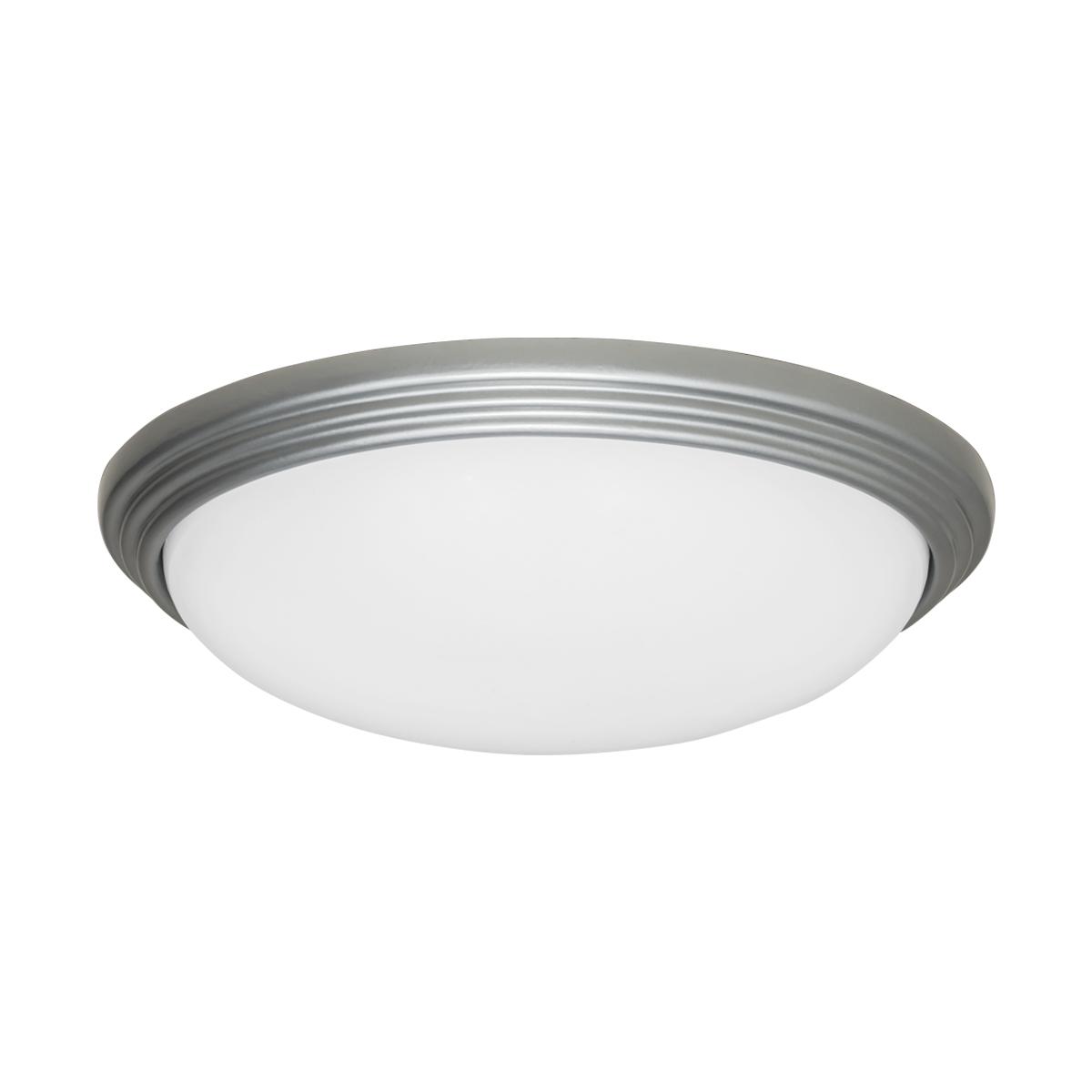

Nickel Tone (NT) finish

PRODUCT INFORMATION

The 2300 is a popular choice because like most Brownlee fixtures, it can customized to your liking. Two sizes, an array of lumen packages, control options and your choice of finish. Highly transmissive diffuser for maximum light output and no exposed hardware.

  • CSA - Damp Location Listed
  • ADA compliant, low profile design
SYMBOLS
OTHER VERSIONS

Product Description

The 2300 is a popular choice because like most Brownlee fixtures, it can customized to your liking. Two sizes, an array of lumen packages, control options and your choice of finish. Highly transmissive diffuser for maximum light output and no exposed hardware.

Line Drawing

Dimensions

17 size - 17.0"dia x 4"d
21 size - 21.5"dia x 4"d

Featured Options and Controls

Choose Your Color Temperature

This model features select LED series wattages available in different color temperatures. Option code: 27K 30K 35K 40K

90+ CRI

This model has wattages available in 3000K with a Color Rendering Index > 90. Option code: 90R

ENERGY STAR®

This model has wattages that are ENERGY STAR® certified. Option code: ES

Buy American Compliant

This option complies with the Buy American requirements of the American Reinvestment and Recovery Act (ARRA). Option code: BAC

Title 24 Compliant

This model has wattages that support Title 24 compliance. This option includes 0-10v dimming, 90 CRI and 2016 JA8 High Efficacy compliant fixture labeling. Option code: T24

DALI

This model has wattages available with DALI compatibility. Option code: DALI

Occupancy Sensor

This model has wattages available with an occupancy sensor that automatically turns the light ON when motion is detected and automatically turns the light OFF when motion is no longer detected. Option code: OCC

Bi-Level Dimming (High/Low)

This model has wattages available with Bi-Level Dimming, a multi-functional motion sensor that switches the fixture's light output to 100% when motion is detected, to Dim (10%, 20%, 30% or 50%), to Off. Option code: BLD

0-10V Dimming

This model has wattages available with an optional 0-10V dimming module. Option code: DIM

Triac Dimming

This model has wattages available with an optional Triac dimming module. Option code: DTR


Limited Warrany

Subject to the terms, conditions and all other details specified in this limited warranty, Brownlee Lighting warrants that all lighting products manufactured by Brownlee Lighting are free from defective materials and workmanship - and that under proper installation and operation at recommended operating conditions at rated voltage, they will be free from failure of lamp holders, starters, ballasts or other component part for the warranty period.

Warranty Period for all Brownlee Lighting products is two (2) years from the date of invoice, except as follows:

  • Brownlee Lighting LED products: Five (5) years from the date of invoice (see LED Notes 1 & 2 below).
  • Brownlee Lighting ENERGY STAR® qualified fluorescent products: Three (3) years from the date of invoice.
  • Lamps (CFL, linear fluorescent, HID, GU24-based LED, etc.) are not covered under this warranty or by Brownlee Lighting in any way. Lamp failure is excluded from the terms of this warranty - claims should be addressed directly with the lamp manufacturer.
  • The warranty on custom products can vary and is determined on a case by case basis - consult with factory for details on custom products prior to purchase.
LED Notes:

1) Exception: Models 7080, 7317, 7318, 7319 & 7322 with LED products: Three (3) years from the date of invoice (see Note 2 below).

2) LED boards are considered to have failed when 13% or more LED chips are not illuminated.

Damage incurred in transit, loading/unloading or from handling and/or installation is excluded from the terms of this warranty. Brownlee Lighting is not responsible for any failure or damage resulting from: product(s) being altered or modified, improperly installed, installed in applications for which not intended and/or recommended, abused or damaged by fire, vandalism, natural catastrophe, acts of God, or any other act(s) of the purchasing party and/or subsequent parties.

Proof of purchase is strictly required. Brownlee Lighting reserves the right to examine the reported defective or otherwise claimed product (and/or other supporting evidence satisfactory to Brownlee Lighting) in order to establish a claim under this warranty. Brownlee Lighting may require the return of any product claimed not to be as warranted to its headquarters, transportation prepaid by purchaser, to establish a claim under this warranty. The cost of labor for removing a Brownlee Lighting product and for installing a repaired or replacement product shall be borne by purchaser.

Brownlee Lighting covers only the repair or replacement of the defective part(s) covered under this warranty, to the original purchaser, and excludes any responsibility for consequential or incidental damages such as labor costs, travel time, freight expense, loss of profit, loss of time, etc., incurred by the purchaser and/or any other party. Replacement parts/fixtures provided under the terms of this warranty are warranted for the remainder of the original warranty which began at the original date of invoice.

This warranty is in lieu of all other warranties, expressed or implied.

LED PERFORMANCE

All LED Series feature a minimum operating temperature of -20°C / -4°F and maximum operating temperature of 40°C / 104°F.

Watts (Actual)CFL Equiv.Driver AmpsAmps @ 110VOutput (27K)Efficacy (27K)Output (30K)Efficacy (30K)Output (35K)Efficacy (35K)Output (40K)Efficacy (40K)
B6LED5.9813Q350 mA0.05622102676111698114698114
B12LED11.8426Q350 mA0.101266107137611614221201421120
C9LED8.8218Q350 mA0.10956108103811810721221073122
C17LED16.51218Q500 mA0.15154794176310718291111862113
C24LED23.8226Q500 mA0.20216391246710425581072604110
C37LED36.9326Q500 mA0.30324488370110138371043906106
C49LED47.6426Q500 mA0.40432691493410451161075208109
*Output shown in lumens (lm). Efficacy shown in lumens per watt (lm/W). Lumen output measured from the source.
